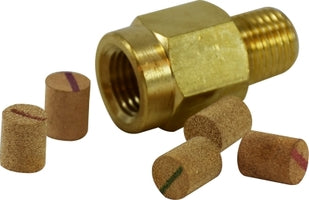

28353 (28-353) by Midland | Pneumatic Pressure Snubber | 1/4" Male Pipe | Porosity: 30um | Straight | Brass

Save $2.12

$13.69

$13.69 - $13.69

$13.69

$11.57

$11.57 - $11.57

$11.57

Midland Industries
Pneumatic Pressure Snubber - Brass

Application: Protect pressure instruments from sudden pressure surges and fluctuations providing more accurate gauge readings.

Quantity

Specifications for Variant SKU: 28353 Midland
Shape (Orientation):	Straight
Ends Configuration:	1/4in Male NPT, 1/4in Male NPT, Some Ends Match
Material(s):	Brass

Features:
Body: Brass Element: Sintered Bronze. Max Operating Pressure: 9000 PSI Temperature: 35° to 300°F Construction: Solid brass housing with porous bronze element. Can be used for mini in-line filters. 5 different porosity elements per package, allows each user to adjust snubbing capacity for the specific application.

Recommended Element Porosity Rating
Rating	Color	Recommended Application
40 um	None	Viscous Fluids (over 500 ssu)


Part Number	Size	Porosity
28354 (28-354)	1/4"	40 um
28353 (28-353)	1/4"	30 um
28352 (28-352)	1/4"	25 um
28351 (28-351)	1/4"	20 um
28350 (28-350)	1/4"	10 um

Midland Industries

Midland Industries is a family of brands recognizable industry wide. Midland is a supplier of brass fittings, valves, and accessories for hose, pipe and tube in brass, bronze, stainless steel, steel, malleable iron, and plastics.
