2840-04X100 Kuri-Tec by Kuriyama | 2840 Series | 95 Shore "A" Ether-Based Heavy Duty Polyurethane Tubing | Clear | 1/4" ID | .375" OD | 100ft Length

2840-04X100 Kuri-Tec by Kuriyama | 2840 Series | 95 Shore "A" Ether-Based Heavy Duty Polyurethane Tubing | Clear | 1/4" ID | .375" OD | 100ft Length

Save $27.46 Save $27.46
$118.06
$118.06 - $118.06
$118.06
$90.60
$90.60 - $90.60
$90.60

Kuri Tec® by Kuriyama

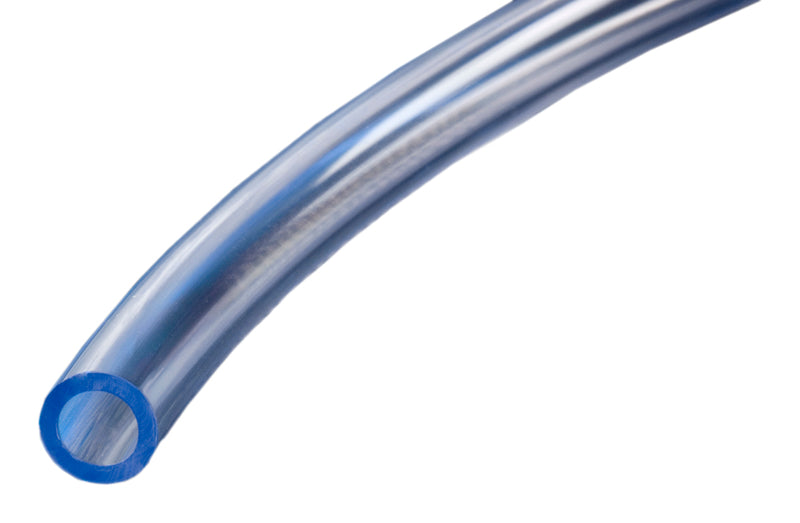

2840 Series | 95 Shore "A" Ether-Based Heavy Duty Polyurethane Tubing | Clear

Ether-based polyurethane tubing for use with the transfer of air, fluids and abrasive slurries.

Package Quantity: 100 Foot

Specifications for Variant SKU: 2840-04X100 Kuriyama | 100 |
Brand: Kuri Tec
Series: 2840 Series
Hose Color(s): Clear/Semi-Clear
Internal Diameter: 0.25in - 1/4in
Outer Diameter: 0.375in
Tubing Construction: Polyurethane
Applicable Specs & Approvals: Applicable FDA Requirements, Applicable NSF Requirements, RoHS Compliant
General Applications:
  • Transfer of air and fluids under severe conditions.
  • Feed and return lines.
  • Abrasive slurry transfer.
  • Granular transfer lines.
  • Robotics control lines.
  • Insulating sleeves.
  • Lubrication lines.
  • Metering pumps.
  • Note: Not recommended for transfer of brake fluids.
Construction:
  • Series 2840, 2841, 2844, 2846 Series: 95 Shore "A" Durometer ether-based polyurethane tubing in FDA and NSF clear material.
  • 2840 Series: Clear.
  • 2841 Series: Solid Yellow.
  • 2844 Series: Solid Red.
  • 2846 Series: Solid Blue.
Service Temperature Range:
  • -40°F (-40°C) to +175°F (+80°C)
Features and Advantages:
  • Abrasion and cut resistance.
  • Good flex fatigue and resilience characteristics.
  • Excellent resistance to ozone, solvents and fuel.
  • Good resistance to hydrolysis.
  • Clear tubing* allows see-through convenience.
  • Complies with RMAfs Class A designation for high oil resistance.
  • Silicone-free.
  • One-piece lengths.
  • RoHS(16) compliant.
  • Phthalate Free!
Specifications:
  • FDA
  • NSF
  • RoHS
  • * Note: The Clear Series 2840 material conforms to the same FDA regulations as Series 2600.
Notes:
  • Working Pressure decreases as temperature increases. Pressure ratings can only be obtained with proper coupling procedures.
2840 Series | Clear
Part Number
100ft Length		 Part Number
300ft Length		 Nominal ID Nominal OD Max Working
Pressure		 Approx. Weight
per Pkg
100ft Length		 Approx. Weight
per Pkg
300ft Length
in mm in mm (PSI)
@70°F
(20°C)		 (PSI)
@122°F
(50°C)
2840-04X100 2840-04X300 1/4" 6.5mm 0.375" 9.5mm 125 PSI 75 PSI 9.5 lbs. 3.1 lbs.
2840-06X100 2840-06X300 3/8" 9.5mm 0.570" 14.5mm 125 PSI 75 PSI 21.7 lbs. 7.2 lbs.
2841 Series | Yellow
Part Number
100ft Length		 Part Number
300ft Length		 Nominal ID Nominal OD Max Working
Pressure		 Approx. Weight
per Pkg
100ft Length		 Approx. Weight
per Pkg
300ft Length
in mm in mm (PSI)
@70°F
(20°C)		 (PSI)
@122°F
(50°C)
2841-04X100 2841-04X300 1/4" 6.5mm 0.375" 9.5mm 125 PSI 75 PSI 9.5 lbs. 3.1 lbs.
2841-06X100 2841-06X300 3/8" 9.5mm 0.570" 14.5mm 125 PSI 75 PSI 21.7 lbs. 7.2 lbs.
2844 Series | Red
Part Number
100ft Length		 Part Number
300ft Length		 Nominal ID Nominal OD Max Working
Pressure		 Approx. Weight
per Pkg
100ft Length		 Approx. Weight
per Pkg
300ft Length
in mm in mm (PSI)
@70°F
(20°C)		 (PSI)
@122°F
(50°C)
2844-04X100 2844-04X300 1/4" 6.5mm 0.375" 9.5mm 125 PSI 75 PSI 9.5 lbs. 3.1 lbs.
2844-06X100 2844-06X300 3/8" 9.5mm 0.570" 14.5mm 125 PSI 75 PSI 21.7 lbs. 7.2 lbs.
2846 Series | Blue
Part Number
100ft Length		 Part Number
300ft Length		 Nominal ID Nominal OD Max Working
Pressure		 Approx. Weight
per Pkg
100ft Length		 Approx. Weight
per Pkg
300ft Length
in mm in mm (PSI)
@70°F
(20°C)		 (PSI)
@122°F
(50°C)
2846-04X100 2846-04X300 1/4" 6.5mm 0.375" 9.5mm 125 PSI 75 PSI 9.5 lbs. 3.1 lbs.
2846-06X100 2846-06X300 3/8" 9.5mm 0.570" 14.5mm 125 PSI 75 PSI 21.7 lbs. 7.2 lbs.

Kuriyama

Located in Schaumburg, Illinois, Kuriyama of America has been eminently successful in developing and marketing a complete line of thermoplastic hose and accessories. Their expansive product line consist of thermoplastic, rubber and metal hose products, along with accessories including couplings and fittings.
