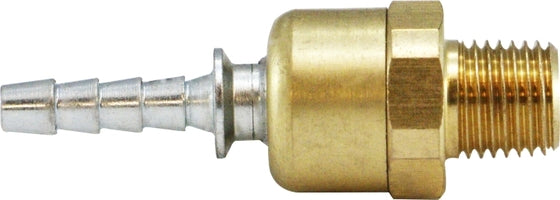

28415 (28-415) by Midland | High Volume Male Ball Swivel Adapter | 1/4" Hose ID x 1/4" Male NPTF | Straight | Brass

Name: 28415 (28-415) by Midland | High Volume Male Ball Swivel Adapter | 1/4" Hose ID x 1/4" Male NPTF | Straight | Brass
Brand: Midland Industries
SKU: 28415 Midland
Price: 27.93 USD
Availability: InStock

Save $5.15

$33.08

$33.08 - $33.08

$33.08

$27.93

$27.93 - $27.93

$27.93

Midland Industries
Brass Fitting - Hose Barb - High Volume Male Swivel Adapter

With Nitrile Buna (NBR) O-Ring.

300 PSI

Inventory @ Manufacturers Warehouse: 4 Units

Quantity

Specifications for Variant SKU: 28415 Midland
Shape (Orientation):	Straight
Ends Configuration:	1/4in Hose Barb, 1/4in Male NPTF
Material(s):	Brass
Seal Material(s):	NBR

Applications:	N/A	Used With:	These fittings are intended for use with hose clamp, similar type clamp or a crimped ferrule.
SAE Rating:	N/A	Conformance:	N/A
Vibration:	N/A	Temperature Range:	-40°F to +160°F at 150 PSI maximum.
Tolerance:	+/- .02 on all dimensions. Dimension Data can change without notice. Please call us when dimensions are critical.	Lead Free:	N/A
Assembly Instructions:	1. Cut hose cleanly and squarely to length. 2. Slide clamp on hose. 3. Lubricate hose. Push hose on fitting until hose bottoms against stop ring or hex. 4. Position hose clamp as shown below and secure with a screwdriver or wrench. Maintain "A" dimension noted below for proper clamp positioning.

Hose Size	3/16"	1/4"	5/16"	3/8"	1/2"	5/8"	3/4"
A	1/4"	1/4"	1/4"	1/8"	1/8"	1/8"	1/8"

Crossover Series:
4065


Part Number	Hose I.D. x Male NPTF	A	B	Hex	Approx. Weight (Lbs.)
32781 (32-781)	3/8" x 1/4"	1.83"	0.87"	0.62"	0.07
28415 (28-415)	1/4" x 1/4"	1.30"	0.94"	0.81"	0.14

Midland Industries

Midland Industries is a family of brands recognizable industry wide. Midland is a supplier of brass fittings, valves, and accessories for hose, pipe and tube in brass, bronze, stainless steel, steel, malleable iron, and plastics.
