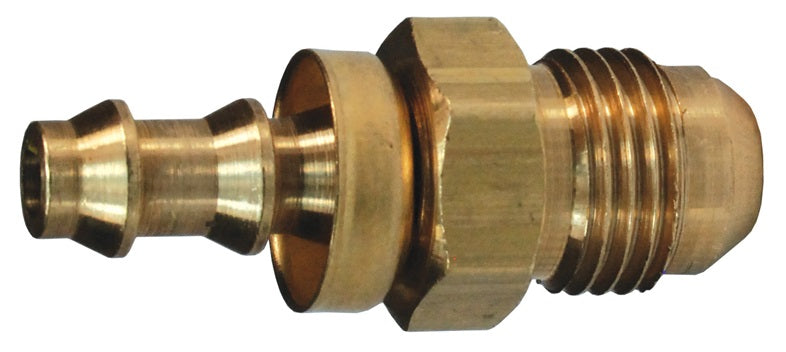

2860409CBC by Dixon Valve | Push-On Hose Barb Fitting | Male 37° JIC | with Brass Cap | 3/8" Tube OD | 1/4" Hose ID x 3/8" Male JIC | Brass

2860409CBC by Dixon Valve | Push-On Hose Barb Fitting | Male 37° JIC | with Brass Cap | 3/8" Tube OD | 1/4" Hose ID x 3/8" Male JIC | Brass

Save $2.94 Save $2.94
$7.35
$7.35 - $7.35
$7.35
$4.41
$4.41 - $4.41
$4.41

Dixon Valve
Push-On Hose Barb Fitting | Male 37° JIC | Male UNF x Hose Barb

Intended for use with Lok-On (push-on style) hose only.
Specifications for Variant SKU: 2860409CBC Dixon
Series: 286 Series
Shape (Orientation): Straight
Ends Configuration: 1/4in Hose Barb, 3/8in Male JIC
Material(s): Brass
Features:
  • No hose clamps or ferrules are needed for installation.
Material:
  • Brass
  • Yellow Plastic Cap (Part numbers that end with CBC have Brass Caps.)
Specifications:
  • Temperature Range: -40 to +150°F
  • Pressure Rating: 350 PSI
Safety Notes:
  • Dixon push-on fittings are intended for use with Lok-On (push-on style) hose only.
  • Caution: Push-on fittings will properly grip push-on hose only when pushed all the way in, with the cut end of the hose completely concealed by the plastic cap.
Installation:
  • Assembly Instructions:
    • 1. Trim hose end with smooth square cut.
    • 2. Lubricate either push-on fitting, hose or both.
    • 3. Insert push-on fitting into hose until first barb is in hose.
    • 4. Place end of fitting against a flat object (bench, wall, etc.) and grip the hose one inch from end. Push with a steady force until end of hose is covered by yellow plastic cap.
  • Disassembly Instructions:
    • 1. Leaving push-on fitting in place, make a 1" cut in the hose along the barbed end of the fitting. Note: Be careful not to nick barbs when cutting the hose.
    • 2. With firm grip on hose, give a sharp downward pull to release the fitting from the hose.
JIC Thread Size to UNF Thread Size Interchange
JIC Thread Number JIC Tube O.D. UNF Thread Size JIC Thread Number JIC Tube O.D. UNF Thread Size
02 1/8" 5/16"-24 12 3/4" 1-1/16"-12
03 3/16" 3/8"-24 14 7/8" 1-3/16"-12
04 1/4" 7/16"-20 16 1" 1-5/16"-12
05 5/16" 1/2"-20 20 1-1/4" 1-5/8"-12
06 3/8" 9/16"-18 24 1-1/2" 1-7/8"-12
08 1/2" 3/4"-16 28 1-3/4" 2-1/4"-12
10 5/8" 7/8"-14 32 2" 2-1/2"-12
Brass Hose I.D. Tube O.D. Female UNF
Part Number Previous
Part Number


2860407C 286-0407 1/4" 1/4" 7/16"-20
2860407CBC** - 1/4" 1/4" 7/16"-20
2860408C 286-0408 1/4" 5/16" 1/2"-20
2860409C 286-0409 1/4" 3/8" 9/16"-18
2860409CBC* - 1/4" 3/8" 9/16"-18
2860609C 286-0609 3/8" 3/8" 9/16"-18
2860609CBC** - 3/8" 3/8" 9/16"-18
2860812C 286-0812 1/2" 1/2" 3/4"-16
2860812CBC** - 1/2" 1/2" 3/4"-16
2861014C 286-1014 5/8" 5/8" 7/8"-14
2861217C* 286-1217 3/4" 3/4" 1-1/16"-12

* UN Thread

** 2 Brass cap on CBC parts
