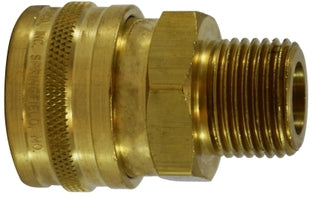

28669 (28-669) by Midland | ST Series (High Flow) Pneumatic Male Coupler | 3/4" Male Pipe | 3/4" Body Size | Straight | Brass

Save $28.27

$70.67

$70.67 - $70.67

$70.67

$42.40

$42.40 - $42.40

$42.40

Midland Industries
ST Series (High Flow) Pneumatic Coupler

Non-valved couplings for applications where maximum flow is required. Ideal for applications such as high pressure water and steam washers, carpet cleaners and mold coolant lines. They are often used in food processing, on fluid and dye transfer lines.

Specifications for Variant SKU: 28669 Midland
Shape (Orientation):	Straight
Material(s):	Brass
Seal Material(s):	Buna-N/Nitrile Rubber

Features:
Standard seals are Buna-N (Nitrile). Temperature Range: -40°F to 250°F

Couplers			Plugs
Brass Male Coupler			Steel Male Plug
Part Number	Thread Size	Body Size	Part Number	Thread Size	Body Size
28667 (28-667)	1/8"	1/8"	28675 (28-675)	1/8"	1/8"
-	-	-	-	-	-
-	-	-	-	-	-
-	-	-	-	-	-
28669 (28-669)	3/4"	3/4"	28677 (28-677)	3/4"	3/4"
28670 (28-670)	1"	1"	-	-	-

Brass Female Coupler			Steel Female Plug
Part Number	Thread Size	Body Size	Part Number	Thread Size	Body Size
28671 (28-671)	1/8"	1/8"	28688 (28-688)	1/8"	1/8"
-	-	-	28619 (28-619)	1/4"	1/4"
-	-	-	-	-	-
-	-	-	-	-	-
28673 (28-673)	3/4"	3/4"	28680 (28-680)	3/4"	3/4"
-	-	-	28681 (28-681)	1"	1"

Midland Industries

Midland Industries is a family of brands recognizable industry wide. Midland is a supplier of brass fittings, valves, and accessories for hose, pipe and tube in brass, bronze, stainless steel, steel, malleable iron, and plastics.
