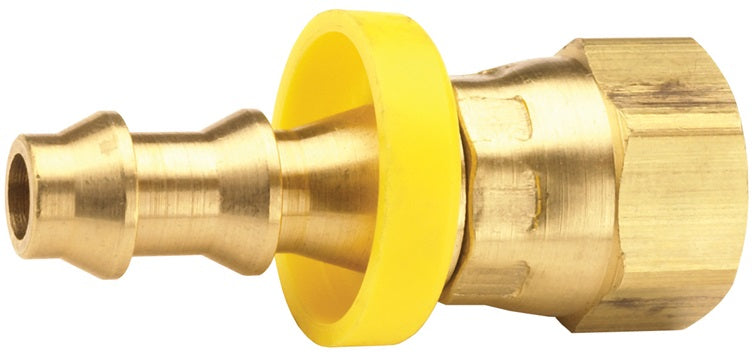

2871014C by Dixon Valve | Push-On Hose Barb Fitting | Female 45° SAE/37° JIC Swivel | 5/8" Tube OD | 5/8" Hose ID x 5/8" Female JIC/SAE 45° Flare Dual Seat | Brass

2871014C by Dixon Valve | Push-On Hose Barb Fitting | Female 45° SAE/37° JIC Swivel | 5/8" Tube OD | 5/8" Hose ID x 5/8" Female JIC/SAE 45° Flare Dual Seat | Brass

Save $3.63 Save $3.63
$9.08
$9.08 - $9.08
$9.08
$5.45
$5.45 - $5.45
$5.45

Dixon Valve
Push-On Hose Barb Fitting | Female 45° SAE/37° JIC Swivel x Hose Barb

Intended for use with Lok-On (push-on style) hose only.
Specifications for Variant SKU: 2871014C Dixon
Series: 287 Series
Shape (Orientation): Straight
Ends Configuration: 5/8in Hose Barb, 5/8in Female JIC/SAE 45° Flare Dual Seat
Material(s): Brass
Features:
  • No hose clamps or ferrules are needed for installation.
  • Dual angle seat.
Material:
  • Brass
  • Yellow Plastic Cap (Part numbers that end with CBC have Brass Caps.)
Specifications:
  • Temperature Range: -40 to +150°F
  • Pressure Rating: 350 PSI
Safety Notes:
  • Dixon push-on fittings are intended for use with Lok-On (push-on style) hose only.
  • Caution: Push-on fittings will properly grip push-on hose only when pushed all the way in, with the cut end of the hose completely concealed by the plastic cap.
Installation:
  • Assembly Instructions:
    • 1. Trim hose end with smooth square cut.
    • 2. Lubricate either push-on fitting, hose or both.
    • 3. Insert push-on fitting into hose until first barb is in hose.
    • 4. Place end of fitting against a flat object (bench, wall, etc.) and grip the hose one inch from end. Push with a steady force until end of hose is covered by yellow plastic cap.
  • Disassembly Instructions:
    • 1. Leaving push-on fitting in place, make a 1" cut in the hose along the barbed end of the fitting. Note: Be careful not to nick barbs when cutting the hose.
    • 2. With firm grip on hose, give a sharp downward pull to release the fitting from the hose.
Brass 303 Stainless Steel Hose I.D. Tube O.D. Female UNF
Part Number Previous
Part Number		 Part Number Previous
Part Number
2870407C 287-0407 2870407SS 287-0407SS 1/4" 1/4" 7/16"-20
2870407CBC - - - 1/4" 1/4" 7/16"-20
2870408C 287-0408 - - 1/4" 5/16" 1/2"-20
2870408CBC - - - 1/4" 5/16" 1/2"-20
2870608C 287-0608 - - 3/8" 5/16" 1/2"-20
2870612C 287-0612 - - 3/8" 1/2" 3/4"-16
2870612CBC - - - 3/8" 1/2" 3/4"-16
2870812C 287-0812 2870812SS 287-0812SS 1/2" 1/2" 3/4"-16
2870812CBC - - - 1/2" 1/2" 3/4"-16
2870814C 287-0814 - - 1/2" 5/8" 7/8"-14
2870814CBC - - - 1/2" 5/8" 7/8"-14
2871014C 287-1014 - - 5/8" 5/8" 7/8"-14
2871014CBC - - - 5/8" 5/8" 7/8"-14
2871214C 287-1214 - - 3/4" 5/8" 7/8"-14
2871214CBC - - - 3/4" 5/8" 7/8"-14

* NSF®/ANSI 61 certified Lead-Free Brass <=0.25% lead, Alloy C2745

** 2 Brass cap on CBC parts
