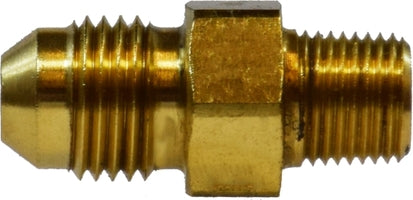

28711 (28-711) Midland JIC 37° Flare - Straight - 1/2" Tube OD - 3/8-18" Male NPTF - 3/4-16 Tube Thread - Brass

28711 by Midland | JIC 37° Flare | 1/2" Tube OD | 3/8-18" Male NPTF | 3/4-16 Tube Thread | Straight | Brass

Save $0.99 Save $0.99
$8.88
$8.88 - $8.88
$8.88
$7.89
$7.89 - $7.89
$7.89

Midland Industries
Brass Fitting - JIC 37° Flare - Male JIC 37° Flare x Male NPTF - Brass

Inventory @ Manufacturers Warehouse: 996 Units
Specifications for Variant SKU: 28711 Midland
Shape (Orientation): Straight
Material(s): Brass
Crossover Series:
B2404 SB FTXB
Part Number Tube OD A NPTF Tube Thread Length Hex Working Pressure
28701
(28-701)		 1/4" 1/8-27 7/16-20 1.22" 0.45" 3250 PSI
28702
(28-702)		 1/4" 1/4-18 7/16-20 1.37" 0.56" 3250 PSI
28703
(28-703)		 1/4" 3/8-18 7/16-20 1.42" 0.75" 3250 PSI
28704 5/16" 1/8-27 1/2-20 1.41" 0.56" 3250 PSI
28705
(28-705)		 5/16" 1/4-18 1/2-20 1.42" 0.56" 3250 PSI
28706
(28-706)		 3/8" 1/8-27 9/16-18 1.24" 0.63" 3250 PSI
28707
(28-707)		 3/8" 1/4-18 9/16-18 1.43" 0.63" 3250 PSI
28708
(28-708)		 3/8" 3/8-18 9/16-18 1.38" 0.75" 3250 PSI
28709
(28-709)		 3/8" 1/2-14 9/16-18 1.69" 0.88" 3250 PSI
28710
(28-710)		 1/2" 1/4-18 3/4-16 1.53" 0.81" 3250 PSI
28711
(28-711)		 1/2" 3/8-18 3/4-16 1.53" 0.81" 3250 PSI
28712
(28-712)		 1/2" 1/2-14 3/4-16 1.79" 0.88" 3250 PSI
28713
(28-713)		 1/2" 3/4-14 3/4-16 1.85" 1.13" 2600 PSI
28714 5/8" 3/8 7/8-14 1.84" 0.94" 3250 PSI
28715
(28-715)		 5/8" 1/2-14 7/8-14 1.89" 0.94" 3250 PSI
28716
(28-716)		 5/8" 3/4-14 7/8-14 1.95" 1.13" 2600 PSI
28748
(28-748)		 3/4" 1/2-14 1-1/16-12 2.06" 1.13" 2925 PSI
28717
(28-717)		 3/4" 3/4-14 1-1/16-12 2.06" 1.13" 2600 PSI
28749
(28-749)		 3/4" 1-11-1/2 1-1/16-12 2.25" 1.38" 1950 PSI
28719
(28-719)		 1" 3/4-14 1-5/16-12 2.06" 1.13" 2275 PSI
28718
(28-718)		 1" 1-11-1/2 1-5/16-12 2.30" 1.38" 1950 PSI
Midland Industries

Midland Industries

Midland Industries is a family of brands recognizable industry wide. Midland is a supplier of brass fittings, valves, and accessories for hose, pipe and tube in brass, bronze, stainless steel, steel, malleable iron, and plastics.
