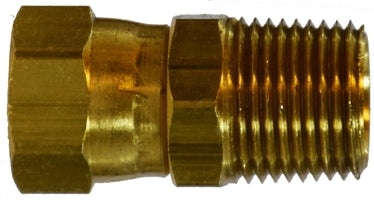

28754 (28-754) Midland JIC 37° Flare - Straight Swivel Adapter - 3/8" Tube OD - 3/8-18" Male NPTF - 9/16-18" Tube Thread - Brass

28754 by Midland | JIC 37° Flare | Swivel | 3/8" Tube OD | 3/8-18" Male NPTF | 9/16-18" Tube Thread | Straight | Adapter | Brass

Save $2.15

$19.32

$19.32 - $19.32

$19.32

$17.17

$17.17 - $17.17

$17.17

Midland Industries
Brass Fitting - JIC 37° Flare - Straight Swivel Adapter - Female JIC x Male NPTF - Brass

Inventory @ Manufacturers Warehouse: 30 Units

Quantity

Specifications for Variant SKU: 28754 Midland
Shape (Orientation):	Straight
Material(s):	Brass

Crossover Series:
B6505	SJS

Part Number	Tube OD	A NPTF	Tube Thread	Length	Hex	Working Pressure
28752 (28-752)	1/4"	1/4-18	7/16-20	1.389"	0.563"	3250 PSI
28753 (28-753)	3/8"	1/4-18	9/16-18	1.600"	0.563"	3250 PSI
28754 (28-754)	3/8"	3/8-18	9/16-18	1.574"	0.690"	2925 PSI
28756 (28-756)	1/2"	1/2-14	3/4-16	1.706"	0.875"	2600 PSI

Midland Industries

Midland Industries is a family of brands recognizable industry wide. Midland is a supplier of brass fittings, valves, and accessories for hose, pipe and tube in brass, bronze, stainless steel, steel, malleable iron, and plastics.
