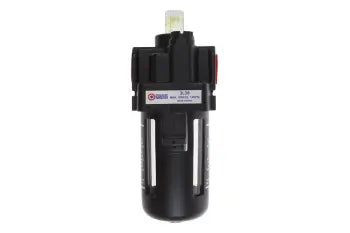

29-4L38 by Coilhose | 29 Series Lubricator | Manual | 3/8" Pipe Size | Aluminum

29-4L38 by Coilhose | 29 Series Lubricator | Manual | 3/8" Pipe Size | Aluminum

Save $8.05 Save $8.05
$72.42
$72.42 - $72.42
$72.42
$64.37
$64.37 - $64.37
$64.37
Coilhose Pneumatics - Filters, Regulators & Lubricators - 29 Series - Lubricators
Specifications for Variant SKU: 29-4L38 Coilhose
Material(s): Polycarbonate, Aluminum
Overview:
  • The 29 Series of Filters - Regulators - Lubricators are made from lightweight aluminum bodies, which lend themselves to a wide variety of applications. These filters, regulators and lubricators are also "modular" in design, meaning the individual units can be removed from the line without disturbing the piping or other components. The 29 Series modular connecting system is designed to save space, making it ideal for OEM equipment as well as suitable for tight areas in shop or factory air lines and assembly areas.
Features:
  • Modular design
  • Metal bowl option
Warning:
  • Although polycarbonate bowls are capable of withstanding extreme physical abuse, they are susceptible to damage and may possibly burst when subjected to some cleaning products and synthetic oils, particularly phosphate esters. Should there be any questions regarding their compatibility with your applications, consult the factory or use a metal bowl.
Proof Pressure: 220 PSI Max Operating Pressure: 145 PSI
Maximum Operating Temp.: Plastic Bowl: 140° F
Metal Bowl: 150° F		 Ambient & Fluid Temp: 32° F to 140° F
Materials: Plastic Bowl: Polycarbonate
Metal Bowl1: Aluminum
Body: Aluminum		 Bowl Guard2 Steel

ManualModel Pipe Size Max. FlowRate CFM Min. OperatingFlow BowlCapacity Features
29-2L18 1/8" 28 0.53 1.1 oz Mini
29-2L18-M 1/8" 28 0.53 1.1 oz Mini, Metal Bowl
29-2L14 1/4" 28 0.53 1.1 oz Mini
29-2L14-M 1/4" 28 0.53 1.1 oz Mini, Metal Bowl
29-3L14 1/4" 60 1.1 5 oz Compact
29-3L14-M 1/4" 60 1.1 5 oz Compact, Metal Bowl
29-3L38 3/8" 60 1.4 5 oz Compact
29-3L38-M 3/8" 60 1.4 5 oz Compact, Metal Bowl
29-4L38 3/8" 175 1.8 16 oz Standard
29-4L38-M 3/8" 175 1.8 16 oz Standard, Metal Bowl
29-4L12 1/2" 175 1.8 16 oz Standard
29-4L12-M 1/2" 175 1.8 16 oz Standard, Metal Bowl
29-5L34 3/4" 250 6.7 16 oz HiFlow
29-5L34-M 3/4" 250 6.7 16 oz HiFlow, Metal Bowl
29-5L10 1" 250 6.7 16 oz HiFlow
29-5L10-M 1" 250 6.7 16 oz HiFlow, Metal Bowl
1Metal bowl is available on all series
2No bowl guard on Series 2L
