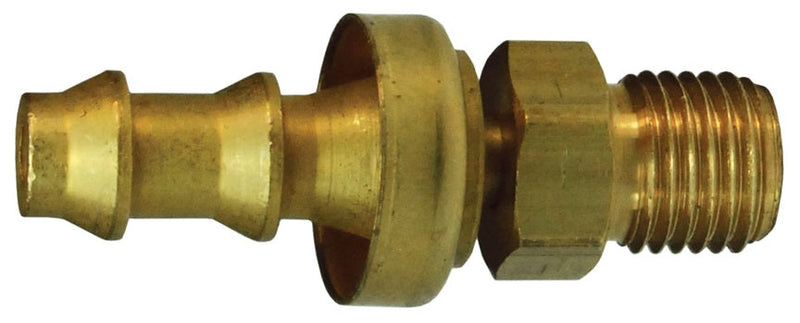

2900407CBC by Dixon Valve | Push-On Hose Barb Fitting | Male SAE Inverted Flare Swivel | with Brass Cap | 1/4" Tube OD | 1/4" Hose ID x 1/4" Male Inverted Flare | Brass

Save $0.32

$5.63

$5.63 - $5.63

$5.63

$5.31

$5.31 - $5.31

$5.31

Dixon Valve
Push-On Hose Barb Fitting | Male SAE Inverted Flare Swivel x Hose Barb

Intended for use with Lok-On (push-on style) hose only.

Quantity

Specifications for Variant SKU: 2900407CBC Dixon
Series:	290 Series
Shape (Orientation):	Straight
Ends Configuration:	1/4in Hose Barb, 1/4in Male Inverted Flare
Material(s):	Brass

Features:
No hose clamps or ferrules are needed for installation.
Material:
Brass Yellow Plastic Cap (Part numbers that end with CBC have Brass Caps.)
Specifications:
Temperature Range: -40 to +150°F Pressure Rating: 350 PSI
Safety Notes:
Dixon push-on fittings are intended for use with Lok-On (push-on style) hose only. Caution: Push-on fittings will properly grip push-on hose only when pushed all the way in, with the cut end of the hose completely concealed by the plastic cap.
Installation:
Assembly Instructions: 1. Trim hose end with smooth square cut. 2. Lubricate either push-on fitting, hose or both. 3. Insert push-on fitting into hose until first barb is in hose. 4. Place end of fitting against a flat object (bench, wall, etc.) and grip the hose one inch from end. Push with a steady force until end of hose is covered by yellow plastic cap. Disassembly Instructions: 1. Leaving push-on fitting in place, make a 1" cut in the hose along the barbed end of the fitting. Note: Be careful not to nick barbs when cutting the hose. 2. With firm grip on hose, give a sharp downward pull to release the fitting from the hose.

Part Number	Previous Part Number	Hose I.D.	Tube O.D.	Male UNF
2900406C	290-0406	1/4"	3/16"	3/8"-24
2900406CBC**	-	1/4"	3/16"	3/8"-24
2900407C	290-0407	1/4"	1/4"	7/16"-24*
2900407CBC**	-	1/4"	1/4"	7/16"-24*
2900408C	290-0408	1/4"	5/16"	1/2"-20
2900408CBC**	-	1/4"	5/16"	1/2"-20
2900508C	290-0508	5/16"	5/16"	1/2"-20
2900510C	290-0510	5/16"	3/8"	5/8"-18
2900608C	290-0608	3/8"	5/16"	1/2"-20
2900610C	290-0610	3/8"	3/8"	5/8"-18
2900610CBC**	-	3/8"	3/8"	5/8"-18
2900812C	290-0812	1/2"	1/2"	3/4"-18*
2901014C	290-1014	5/8"	5/8"	7/8"-18*

* UNS thread
** Brass cap on CBC parts

Dixon Valve & Coupling

Dixon, founded in 1916, is a premier manufacturer and supplier of hose couplings, valves, dry disconnects, swivels, and other fluid transfer and control products. Our global reach includes a wide range of products for numerous industries including petroleum exploration, refining, transportation, chemical processing, food and beverage, steel, fire protection, construction, mining, and manufacturing.
