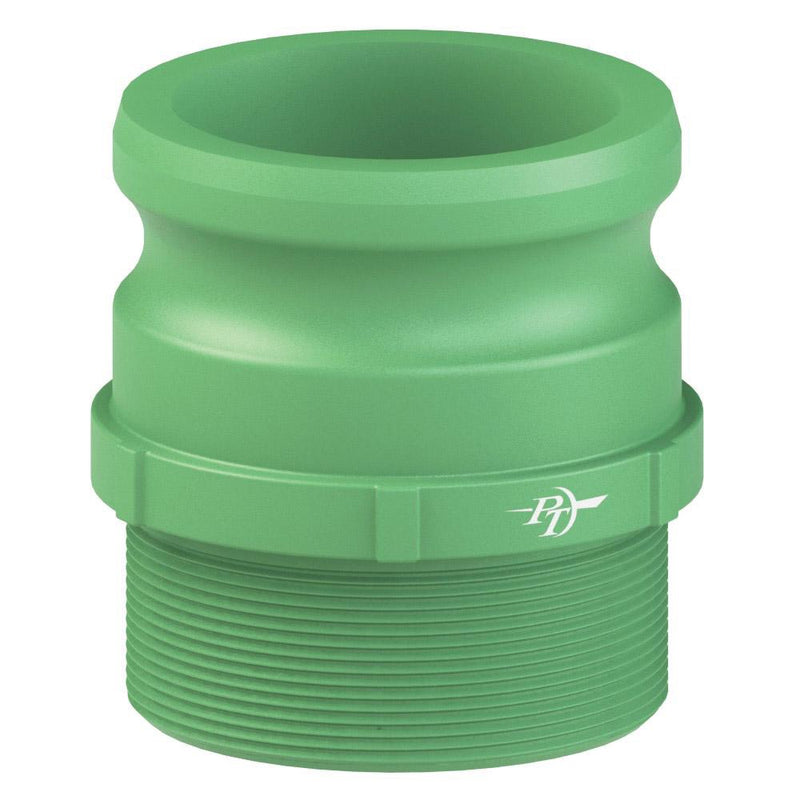

2900630 (30F) by PT-Coupling | Cam & Groove Adapter | Type F | 3" Adapter x 3" Male NPT | Nylon

Name: 2900630 (30F) by PT-Coupling | Cam & Groove Adapter | Type F | 3" Adapter x 3" Male NPT | Nylon
Brand: PT-Coupling
SKU: 2900630 PT-Coupling
Price: 18.39 USD
Availability: InStock

Save $10.86

$29.25

$29.25 - $29.25

$29.25

$18.39

$18.39 - $18.39

$18.39

PT Coupling
Cam and Groove (Camlock) Adapter | Type F | Adapter x Male NPT | Nylon

Use with water, hydraulic oil, coolants, gasoline, and petroleum products.

Made in the USA

Specifications for Variant SKU: 2900630 PT-Coupling
Shape (Orientation):	Straight
Cam Type:	Type F
Ends Configuration:	3in Male Cam & Groove, 3in Male NPT
Material(s):	Nylon

Overview:
PT Quick Connect/Disconnect Couplings provide for quick connecting and disconnecting by means of the camming action. This camming action allows pipe and hose connections to be made without the need of hand tools or difficult threaded connections. Cam and groove couplings are made up of two parts, male (adapter/plug) and female (coupler/socket) that work together. The male adapter is simply inserted into the female coupler until contact is made with the gasket. Both cam arms on the coupler are then pressed down/closed simultaneously to produce a uniform gasket compression between the seal surfaces. This seal is created because the cam arms of the female coupler fit snugly against the groove of the male adapter. A positive seal requires that the surfaces on the gasket seat, the adapter face, and the gasket are smooth and uncontaminated. Also cam arms must be in the full closed position for proper locking of the coupling. To disconnect both arms must be lifted / opened simultaneously to release the seal and release the connection.
Features & Applications:
Glass-fiber reinforced for strength. Good abrasion, corrosion and chemical resistance. Color: Green Use with water, coolants, gasoline and varnish. Couplings not interchangeable in the industry are sizes 8" through 12". Made in the USA


Part Name	Item #	Adapter Size	Male NPT Thread	Overall Length (C)	Exposed Length (D)	Inside Diameter (E)	Max. Across Corners (F)	Chain Lug Extension (G)	Engagement Length	Max. Allowable Working Press. (PSI)*
07F	2900607	3/4"	3/4"	2.47"	1.67"	0.75"	1.42"	-	0.97"	100 PSI
10F	2900610	1"	1"	2.89"	1.99"	0.85"	1.75"	0.34"	1.19"	100 PSI
12F	2900612	1-1/4"	1-1/4"	3.23"	2.23"	1.04"	2.16"	0.34"	1.44"	100 PSI
15F	2900615	1-1/2"	1-1/2"	3.29"	2.31"	1.34"	2.44"	0.30"	1.48"	100 PSI
20F	2900620	2"	2"	3.57"	2.57"	1.72"	2.84"	0.28"	1.75"	100 PSI
30F	2900630	3"	3"	4.37"	2.87"	2.80"	4.07"	0.44"	1.84"	50 PSI

*Above maximum allowable working pressures are based on operating temperatures less than 100°F.
