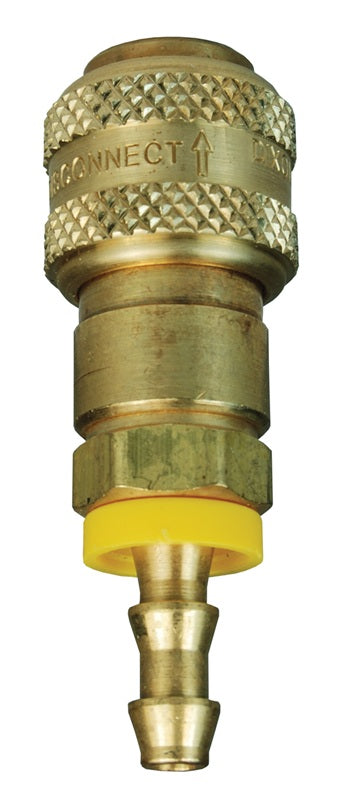

2DB2-B by Dixon Valve | Pneumatic Quick Disconnect Coupling | D-Series | Push-Loc Hose Barb | 1/4" Hose ID x 1/4" Automatic Industrial Interchange | Socket | Nitrile Seal | Brass
2DB2-B by Dixon Valve | Pneumatic Quick Disconnect Coupling | D-Series | Push-Loc Hose Barb | 1/4" Hose ID x 1/4" Automatic Industrial Interchange | Socket | Nitrile Seal | Brass
2DB2-B by Dixon Valve | Pneumatic Quick Disconnect Coupling | D-Series | Push-Loc Hose Barb | 1/4" Hose ID x 1/4" Automatic Industrial Interchange | Socket | Nitrile Seal | Brass

2DB2-B by Dixon Valve | Pneumatic Quick Disconnect Coupling | D-Series | Push-Loc Hose Barb | 1/4" Hose ID x 1/4" Automatic Industrial Interchange | Socket | Nitrile Seal | Brass

Save $6.03 Save $6.03
$15.08
$15.08 - $15.08
$15.08
$9.05
$9.05 - $9.05
$9.05

Dixon Valve & Coupling
Pneumatic Coupling: F-Series Manual Industrial Interchange Coupler (Standard Hose Barb)
Specifications for Variant SKU: 2DB2-B Dixon
Series: D-Series
Shape (Orientation): Straight
Ends Configuration: 1/4in Female ISO-6150 Series B Industrial Pneumatic QD Interchange, 1/4in Push-On Hose Barb
Material(s): Brass
Seal Material(s): Buna-N/Nitrile Rubber
Compatibility & Interchange:
  • Foster 3, 4, 5 and 6 Series
  • Parker 30 - Series Automatic Interchange
  • Hansen 3000, 4000, 5000 and 6000

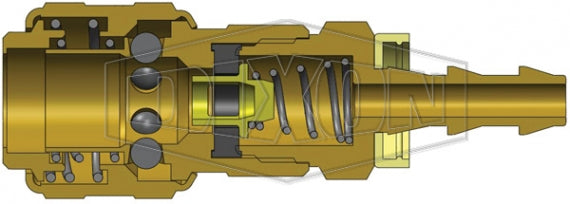

Construction:
  • Machined components are manufactured using solid bar stock.
  • Stainless steel balls, retaining rings and springs maximize corrosion resistance and extend service life.
  • Nitrile (Nitrile Rubber) seals are standard.
  • Steel componentry is plated using ROHS Compliant Trivalent Chrome.
  • Steel tubular valve.
Safety Notes:
  • It is important to be safe when installing quick disconnect couplings into a pneumatic circuit. Never install a pneumatic coupling directly into an air tool, use a piece of hose that is at least 18" long, between the tool and the coupling, to prevent damage to the coupling. To protect the operator, safety devices, such as a safety check valve and safety cable should be installed in case there is a hose or coupling failure.
  • Operating pressure for couplings utilizing hose barb connections may be dramatically reduced to that of the hose rating and/or hose end connection combination. Consult hose manufacturer's catalog for hose end connection ratings. If in doubt, test under controlled conditions for suitability to application.
  • Dixon cannot assume liability for misapplication of production resulting in equipment down-time, lost production, and/or personal injury including death.
Additional Information:
D-Series | Automatic Industrial Interchange Coupler (Push-Loc Barb)
Part
Number		 Coupling
Type		 Body
Size		 Hose I.D. Material Length Max.
OD		 Hex Max. Working
Pressure		 Burst
Pressure
Brass Coupler
& Brass Plug:		 Brass Coupler
& Steel Plug:		 Brass Coupler
& Brass Plug:		 Brass Coupler
& Steel Plug:
2DB2-B Socket/Female 1/4" 1/4" Brass 2.76"
(70.1mm)		 0.98"
(24.9mm)		 11/16" 300 PSI
(20 bar)		 500 PSI
(35 bar)		 16,000 PSI
(1,100 bar)		 16,000 PSI
(1,100 bar)
2DB3-B Socket/Female 1/4" 3/8" Brass 2.77"
(70.4mm)		 0.98"
(24.9mm)		 11/16" 300 PSI
(20 bar)		 500 PSI
(35 bar)		 16,000 PSI
(1,100 bar)		 16,000 PSI
(1,100 bar)
3DB3-B Socket/Female 3/8" 3/8" Brass 2.82"
(71.7mm)		 1.18"
(30.0mm)		 7/8" 300 PSI
(20 bar)		 500 PSI
(35 bar)		 14,500 PSI
(1,000 bar)		 15,500 PSI
(1,070 bar)
4DB4-B Socket/Female 1/2" 1/2" Brass 3.31"
(84.1mm)		 1.34"
(34.0mm)		 1-1/16" 300 PSI
(20 bar)		 500 PSI
(35 bar)		 10,500 PSI
(1,000 bar)		 14,000 PSI
(965 bar)
DF-Series | Industrial Interchange Plug (Push-Loc Barb)
Part Number Coupling Type Body Size Hose I.D. Material Length Maximum OD Hex Working Pressure / Burst Pressure
when Connected to:
D2B2 Plug/Male 1/4" 1/4" Steel 2.09"
(53.1mm)		 0.69"
(17.5mm)		 -
  • Brass D-Series Automatic Couplers: Max. Working: 500 PSI (35 bar) | Burst: 16,000 PSI (1,100 bar)
  • Brass F-Series Manual Couplers: Max. Working: 500 PSI (35 bar) | Burst: 11,500 PSI (790 bar)
  • Steel F-Series Manual Couplers: Max. Working: 500 PSI (35 bar) | Burst: 6,500 PSI (448 bar)
    D2B2-B Plug/Male 1/4" 1/4" Brass 2.09"
    (53.1mm)    		 0.69"
    (17.5mm)    		 -
    • Brass D-Series Automatic Couplers: Max. Working: 500 PSI (35 bar) | Burst: 16,000 PSI (1,100 bar)
    • Brass F-Series Manual Couplers: Max. Working: 300 PSI (20 bar) | Burst: 8,500 PSI (586 bar)
      D2B3 Plug/Male 1/4" 3/8" Steel 2.09"
      (53.1mm)      		 0.86"
      (21.8mm)      		 -
      • Brass D-Series Automatic Couplers: Max. Working: 500 PSI (35 bar) | Burst: 16,000 PSI (1,100 bar)
      • Brass F-Series Manual Couplers: Max. Working: 500 PSI (35 bar) | Burst: 11,500 PSI (790 bar)
      • Steel F-Series Manual Couplers: Max. Working: 500 PSI (35 bar) | Burst: 6,500 PSI (448 bar)
        D3B2 Plug/Male 3/8" 1/4" Steel 2.21"
        (56.1mm)        		 0.75"
        (19.1mm)        		 -
        • Brass D-Series Automatic Couplers: Max. Working: 500 PSI (35 bar) | Burst: 15,500 PSI (1,070 bar)
        • Brass F-Series Manual Couplers: Max. Working: 500 PSI (35 bar) | Burst: 11,500 PSI (790 bar)
        • Steel F-Series Manual Couplers: Max. Working: 500 PSI (35 bar) | Burst: 19,500 PSI (1,345 bar)
          D3B3 Plug/Male 3/8" 3/8" Steel 2.21"
          (56.1mm)          		 0.75"
          (19.1mm)          		 -
          • Brass D-Series Automatic Couplers: Max. Working: 500 PSI (35 bar) | Burst: 15,500 PSI (1,070 bar)
          • Brass F-Series Manual Couplers: Max. Working: 500 PSI (35 bar) | Burst: 11,500 PSI (790 bar)
          • Steel F-Series Manual Couplers: Max. Working: 500 PSI (35 bar) | Burst: 19,500 PSI (1,345 bar)
            D3B4 Plug/Male 3/8" 1/2" Steel 2.35"
            (59.7mm)            		 0.75"
            (19.1mm)            		 -
            • Brass D-Series Automatic Couplers: Max. Working: 500 PSI (35 bar) | Burst: 15,500 PSI (1,070 bar)
            • Brass F-Series Manual Couplers: Max. Working: 500 PSI (35 bar) | Burst: 11,500 PSI (790 bar)
            • Steel F-Series Manual Couplers: Max. Working: 500 PSI (35 bar) | Burst: 19,500 PSI (1,345 bar)
              D4B4 Plug/Male 1/2" 1/2" Steel 2.67"
              (67.8mm)              		 0.75"
              (19.1mm)              		 -
              • Brass D-Series Automatic Couplers: Max. Working: 500 PSI (35 bar) | Burst: 14,000 PSI (965 bar)
              • Steel F-Series Manual Couplers: Max. Working: 500 PSI (35 bar) | Burst: 15,500 PSI (1,070 bar)
                D6B6 Plug/Male 3/4" 3/4" Steel 2.99"
                (75.9mm)                		 1.00"
                (25.4mm)                		 -
                • Brass D-Series Automatic Couplers: Max. Working: 500 PSI (35 bar) | Burst: 10,000 PSI (670 bar)
