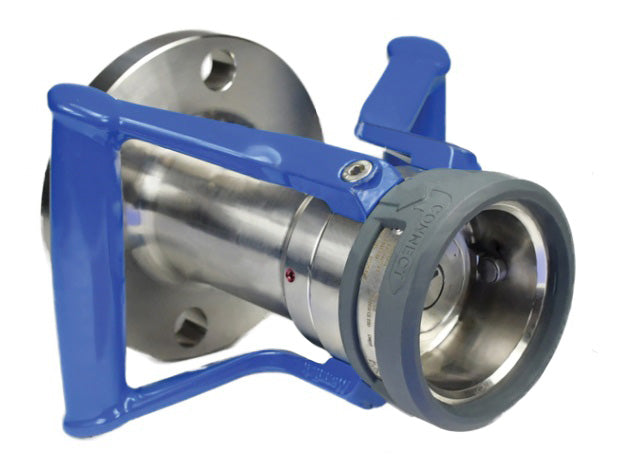

2DDC200SSFL by Dixon Valve | MannTek Dry Disconnect Coupling 2.0 Design | 2" 150# ASA Flange x 70mm Body Size | 316 Stainless Steel

2DDC200SSFL by Dixon Valve | MannTek Dry Disconnect Coupling 2.0 Design | 2" 150# ASA Flange x 70mm Body Size | 316 Stainless Steel

Save $1,945.99 Save $1,945.99
$4,864.98
$4,864.98 - $4,864.98
$4,864.98
$2,918.99
$2,918.99 - $2,918.99
$2,918.99

Dixon Valve
MannTek Dry Disconnect Coupling 2.0 | Coupler x 150# ASA Flange

Designed for the quick and spill-free connection and disconnection of hoses and pipelines.

New 2.0 design based on handling and ergonomics.

50% less force needed to couple the units together.

43% improved flow capacity.
Specifications for Variant SKU: 2DDC200SSFL Dixon
Brand: MannTek
Shape (Orientation): Straight
Material(s): 316 Stainless Steel
Seal Material(s): FKM
Features:
  • Integrated body, handle, and bumper for supreme performance.
  • Bumper with guidance covering the roll axles and arrow for easier alignment.
  • Shorter loading times and reduced energy consumption.
Applications:
  • Used by producers of ink, adhesives, fatty acids, pharmaceuticals, liquid soaps, petroleum, chemicals, agricultural products, and a wide variety of common caustic and specialty acids.
  • Designed for the quick and spill-free connection and disconnection of hoses and pipelines.
Specifications:
  • Working pressure at ambient temperature 70°F (21°C):
  • Stainless Steel: 360 PSI
316 Stainless Steel
Part Number		 150# Flange Body Size
2DDC200SSFL 2" 70 mm
2DDC300SSFL 3" 119 mm

Dixon Valve & Coupling

Dixon, founded in 1916, is a premier manufacturer and supplier of hose couplings, valves, dry disconnects, swivels, and other fluid transfer and control products. Our global reach includes a wide range of products for numerous industries including petroleum exploration, refining, transportation, chemical processing, food and beverage, steel, fire protection, construction, mining, and manufacturing.
