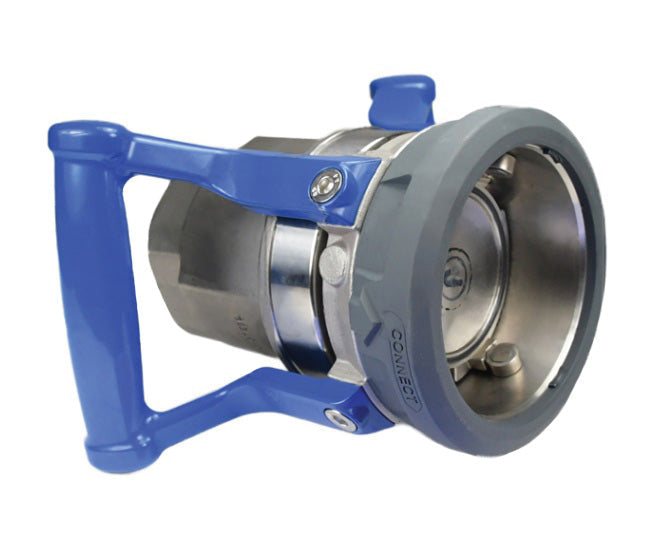

2DDC300SS by Dixon Valve | MannTek Dry Disconnect Coupling 2.0 Design | 3" Female NPT x 119mm Body Size | 316 Stainless Steel

2DDC300SS by Dixon Valve | MannTek Dry Disconnect Coupling 2.0 Design | 3" Female NPT x 119mm Body Size | 316 Stainless Steel

Save $2,168.47 Save $2,168.47
$5,421.18
$5,421.18 - $5,421.18
$5,421.18
$3,252.71
$3,252.71 - $3,252.71
$3,252.71

Dixon Valve
MannTek Dry Disconnect Coupling 2.0 | Coupler x Female NPT

Designed for the quick and spill-free connection and disconnection of hoses and pipelines.

New 2.0 design based on handling and ergonomics.

50% less force needed to couple the units together.

43% improved flow capacity.
Specifications for Variant SKU: 2DDC300SS Dixon
Brand: MannTek
Shape (Orientation): Straight
Material(s): 316 Stainless Steel
Seal Material(s): FKM
Features:
  • Integrated body, handle, and bumper for supreme performance.
  • Bumper with guidance covering the roll axles and arrow for easier alignment.
  • Shorter loading times and reduced energy consumption.
Applications:
  • Used by producers of ink, adhesives, fatty acids, pharmaceuticals, liquid soaps, petroleum, chemicals, agricultural products, and a wide variety of common caustic and specialty acids.
  • Designed for the quick and spill-free connection and disconnection of hoses and pipelines.
Specifications:
  • Working pressure at ambient temperature 70°F (21°C):
    • Aluminum: 230 PSI, up to 4"
    • Brass/gunmetal*: 230 PSI, up to 4"
    • Stainless Steel: 360 PSI

*Produced to U.S. government bronze specification G

316 Stainless Steel
Part Number		 Aluminum
Part Number		 Brass/Gunmetal
Part Number		 Female NPT Body Size
2DDC200SS 2DDC200AL 2DDC200BR 2" 70 mm
2DDC300SS 2DDC300AL - 3" 119 mm
P
Dixon Valve & Coupling

Dixon Valve & Coupling

Dixon, founded in 1916, is a premier manufacturer and supplier of hose couplings, valves, dry disconnects, swivels, and other fluid transfer and control products. Our global reach includes a wide range of products for numerous industries including petroleum exploration, refining, transportation, chemical processing, food and beverage, steel, fire protection, construction, mining, and manufacturing.
