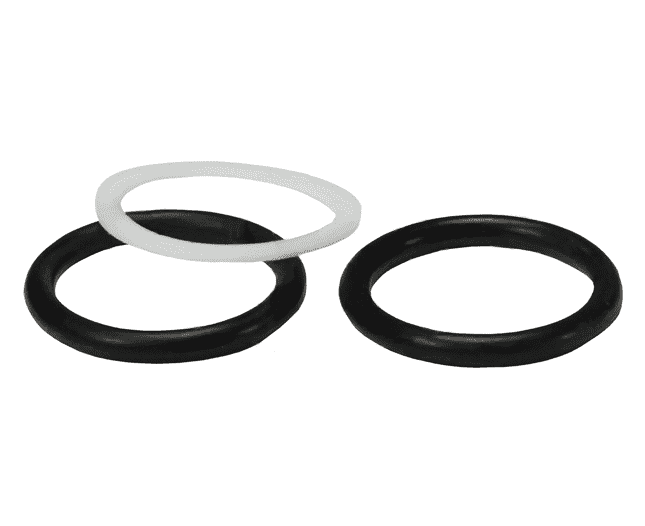

2H-SKIT by Dixon Valve | Hydraulic Quick Disconnect Coupling | H-Series | ISO-B Coupler Seal Kit | Fits 1/4" Body Size | Nitrile Seal | 2 O-Rings & 1 PTFE Anti-Extrusion Ring

2H-SKIT by Dixon Valve | Hydraulic Quick Disconnect Coupling | H-Series | ISO-B Coupler Seal Kit | Fits 1/4" Body Size | Nitrile Seal | 2 O-Rings & 1 PTFE Anti-Extrusion Ring

Save $0.23 Save $0.23
$2.08
$2.08 - $2.08
$2.08
$1.85
$1.85 - $1.85
$1.85

Dixon Valve & Coupling
Hydraulic Coupling: H-Series ISO-B Coupler Seal Kit
Can I get a discount on my purchase?

Our listed prices are our lowest possible price with current costing but when volumes/value are high enough sometimes we can pass on a discount from the manufacturer.

Some products have predefined quantity discounts that will apply automatically, those pages have a table near the price describing the discount teirs.

If you feel your purchase quantity of a particular product is very large and want us to investigate with the manufacturer please feel free to Contact Us.

What if my item is out of stock?

All customers get an email regarding the shipping time frame of their purchase, usually within the business day. If your item is in stock we will ship within 1 business day, otherwise, the email will contain a lead time. If you do not receive this email, we recommend checking your email's spam folder. If you have any questions at that point please do not hesitate to Contact Us or chat below!

Can I get free shipping?

Shipping will calculate as free instantly if your order value exceeds $5000.

Some exceptions apply.

Free Freight is only available for the Contiguous USA.

Specifications for Variant SKU: 2H-SKIT Dixon
Series: H-Series
Seal Material(s): Buna-N/Nitrile Rubber
Compatibility & Interchange:
  • Interchangeable to ISO7241 Series 'B'
  • Parker 60-Series, Snap-Tite 72-Series, Hansen HK-Series, Faster Series 'HNV', Danfoss/Aeroquip/Eaton FD45, Stucchi Series IRB/IRBO/IRBX, ISO 7241-B
Additional Information:
Part Number Fits Body Size Seal Material Used On Coupler Style Seal Kit Contents
1H-SKIT 1/8" Nitrile Steel / 303 SS / 316 SS / Brass 2 O-Rings & 1 PTFE Anti-Extrusion Ring
F-1H-SKIT 1/8" FKM Steel / 303 SS / 316 SS / Brass 2 O-Rings & 1 PTFE Anti-Extrusion Ring
P-1H-SKIT 1/8" EPDM Steel / 303 SS / 316 SS / Brass 2 O-Rings & 1 PTFE Anti-Extrusion Ring

2H-SKIT 1/4" Nitrile Steel / 303 SS / 316 SS / Brass 2 O-Rings & 1 PTFE Anti-Extrusion Ring
F-2H-SKIT 1/4" FKM Steel / 303 SS / 316 SS / Brass 2 O-Rings & 1 PTFE Anti-Extrusion Ring
P-2H-SKIT 1/4" EPDM Steel / 303 SS / 316 SS / Brass 2 O-Rings & 1 PTFE Anti-Extrusion Ring

3H-SKIT 3/8" Nitrile Steel / 303 SS / 316 SS / Brass 2 O-Rings & 1 PTFE Anti-Extrusion Ring
F-3H-SKIT 3/8" FKM Steel / 303 SS / 316 SS / Brass 2 O-Rings & 1 PTFE Anti-Extrusion Ring
P-3H-SKIT 3/8" EPDM Steel / 303 SS / 316 SS / Brass 2 O-Rings & 1 PTFE Anti-Extrusion Ring

4H-SKIT 1/2" Nitrile Steel / 303 SS / 316 SS / Brass 2 O-Rings & 1 PTFE Anti-Extrusion Ring
F-4H-SKIT 1/2" FKM Steel / 303 SS / 316 SS / Brass 2 O-Rings & 1 PTFE Anti-Extrusion Ring
P-4H-SKIT 1/2" EPDM Steel / 303 SS / 316 SS / Brass 2 O-Rings & 1 PTFE Anti-Extrusion Ring

6H-SKIT 3/4" Nitrile Steel / 303 SS / 316 SS / Brass 2 O-Rings & 1 PTFE Anti-Extrusion Ring
F-6H-SKIT 3/4" FKM Steel / 303 SS / 316 SS / Brass 2 O-Rings & 1 PTFE Anti-Extrusion Ring
P-6H-SKIT 3/4" EPDM Steel / 303 SS / 316 SS / Brass 2 O-Rings & 1 PTFE Anti-Extrusion Ring

8H-SKIT 1" Nitrile Steel / 303 SS / 316 SS / Brass 2 O-Rings & 1 PTFE Anti-Extrusion Ring
F-8H-SKIT 1" FKM Steel / 303 SS / 316 SS / Brass 2 O-Rings & 1 PTFE Anti-Extrusion Ring
P-8H-SKIT 1" EPDM Steel / 303 SS / 316 SS / Brass 2 O-Rings & 1 PTFE Anti-Extrusion Ring

10H-SKIT 1-1/4" Nitrile Steel / 303 SS / 316 SS / Brass Adapter/Valve O-Ring & 2 Body O-Rings
F-10H-SKIT 1-1/4" FKM Steel / 303 SS / 316 SS / Brass Adapter/Valve O-Ring & 2 Body O-Rings
P-10H-SKIT 1-1/4" EPDM Steel / 303 SS / 316 SS / Brass Adapter/Valve O-Ring & 2 Body O-Rings

12H-SKIT 1-1/2" Nitrile Steel / 303 SS / 316 SS / Brass Adapter/Valve O-Ring & 2 Body O-Rings
F-12H-SKIT 1-1/2" FKM Steel / 303 SS / 316 SS / Brass Adapter/Valve O-Ring & 2 Body O-Rings
P-12H-SKIT 1-1/2" EPDM Steel / 303 SS / 316 SS / Brass Adapter/Valve O-Ring & 2 Body O-Rings
Dixon Valve & Coupling

Dixon Valve & Coupling

Dixon, founded in 1916, is a premier manufacturer and supplier of hose couplings, valves, dry disconnects, swivels, and other fluid transfer and control products. Our global reach includes a wide range of products for numerous industries including petroleum exploration, refining, transportation, chemical processing, food and beverage, steel, fire protection, construction, mining, and manufacturing.
