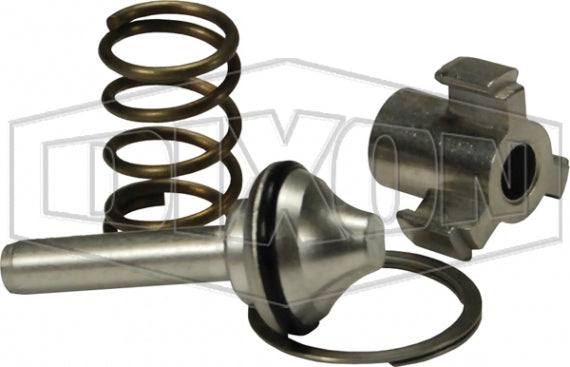

2H-SRKIT by Dixon Valve | Hydraulic Quick Disconnect Coupling | H-Series | ISO-B Repair Kit | For 1/4" Body Size | Nitrile Seal | For 303 Stainless Steel Couplers

Save $0.73

$6.53

$6.53 - $6.53

$6.53

$5.80

$5.80 - $5.80

$5.80

Dixon Valve & Coupling
Hydraulic Coupling: H-Series ISO-B Coupler Repair Kit

Quantity

Specifications for Variant SKU: 2H-SRKIT Dixon
Series:	H-Series
Seal Material(s):	Buna-N/Nitrile Rubber

Compatibility & Interchange:	Interchangeable to ISO7241 Series 'B' Parker 60-Series, Snap-Tite 72-Series, Hansen HK-Series, Faster Series 'HNV', Danfoss/Aeroquip/Eaton FD45, Stucchi Series IRB/IRBO/IRBX, ISO 7241-B
Additional Information:	For a selection guide, cross reference tables, safety info, fluid compatibility, and other general info, please see: Dixon Valve Quick Disconnect Guide.PDF

Part Number	Used On Coupler Style	Fits Body Size	Seal Material	Repair Kit Contents (for one coupler or plug)
2H-RKIT	Steel	1/4"	Nitrile	Steel Valve Assembly & Retaining Ring
2H-BRKIT	Brass	1/4"	Nitrile	Brass Valve Assembly & Retaining Ring
2H-SRKIT	303 Stainless	1/4"	Nitrile	303 SS Valve Assembly & Retaining Ring
2H-SSRKIT	316 Stainless	1/4"	Nitrile	316 SS Valve Assembly & Retaining Ring

3H-RKIT	Steel	3/8"	Nitrile	Steel Valve Assembly & Retaining Ring
3H-BRKIT	Brass	3/8"	Nitrile	Brass Valve Assembly & Retaining Ring
3H-SRKIT	303 Stainless	3/8"	Nitrile	303 SS Valve Assembly & Retaining Ring
3H-SSRKIT	316 Stainless	3/8"	Nitrile	316 SS Valve Assembly & Retaining Ring

4H-RKIT	Steel	1/2"	Nitrile	Steel Valve Assembly & Retaining Ring
4H-BRKIT	Brass	1/2"	Nitrile	Brass Valve Assembly & Retaining Ring
4H-SRKIT	303 Stainless	1/2"	Nitrile	303 SS Valve Assembly & Retaining Ring
4H-SSRKIT	316 Stainless	1/2"	Nitrile	316 SS Valve Assembly & Retaining Ring

6H-RKIT	Steel	3/4"	Nitrile	Steel Valve Assembly & Retaining Ring
6H-BRKIT	Brass	3/4"	Nitrile	Brass Valve Assembly & Retaining Ring
6H-SRKIT	303 Stainless	3/4"	Nitrile	303 SS Valve Assembly & Retaining Ring
6H-SSRKIT	316 Stainless	3/4"	Nitrile	316 SS Valve Assembly & Retaining Ring

8H-RKIT	Steel	1"	Nitrile	Steel Valve Assembly & Retaining Ring
8H-BRKIT	Brass	1"	Nitrile	Brass Valve Assembly & Retaining Ring
8H-SRKIT	303 Stainless	1"	Nitrile	303 SS Valve Assembly & Retaining Ring
8H-SSRKIT	316 Stainless	1"	Nitrile	316 SS Valve Assembly & Retaining Ring

10H-RKIT	Steel	1-1/4"	Nitrile	Steel Valve Assembly & Retaining Ring
10H-BRKIT	Brass	1-1/4"	Nitrile	Brass Valve Assembly & Retaining Ring
10H-SRKIT	303 Stainless	1-1/4"	Nitrile	303 SS Valve Assembly & Retaining Ring
10H-SSRKIT	316 Stainless	1-1/4"	Nitrile	316 SS Valve Assembly & Retaining Ring

12H-RKIT	Steel	1-1/2"	Nitrile	Steel Valve Assembly & Retaining Ring
12H-BRKIT	Brass	1-1/2"	Nitrile	Brass Valve Assembly & Retaining Ring
12H-SSRKIT	316 Stainless	1-1/2"	Nitrile	316 SS Valve Assembly & Retaining Ring
