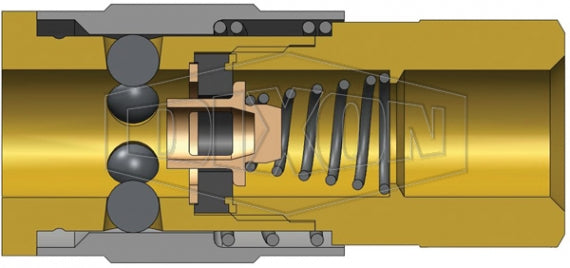

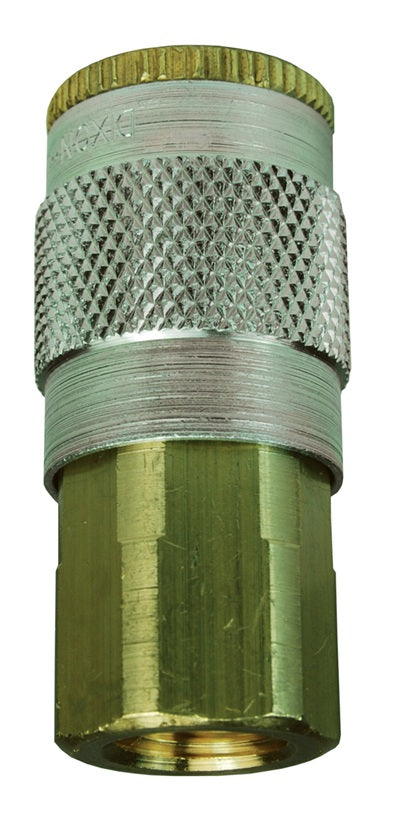

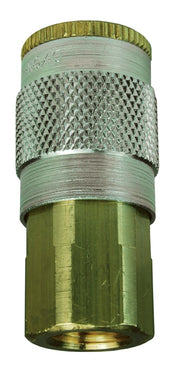

2JF2-B by Dixon Valve | Pneumatic Quick Disconnect Coupling | J-Series | 1/4" Female NPTF x 1/4" Automotive Interchange | Socket | Nitrile Seal | Brass

Save $0.26

$6.45

$6.45 - $6.45

$6.45

$6.19

$6.19 - $6.19

$6.19

Dixon Valve & Coupling
Pneumatic Coupling: J-Series Automotive Interchange Coupler (Female Threads)

Quantity

Specifications for Variant SKU: 2JF2-B Dixon
Series:	J-Series
Shape (Orientation):	Straight
Ends Configuration:	1/4in Female Tru-Flate QD Interchange, 1/4in Female NPTF
Material(s):	Brass
Seal Material(s):	Buna-N/Nitrile Rubber

Compatibility & Interchange:	Truflate Automotive Interchange Parker 10 Series, Rectus 55KM and Tomco A2100/PT400
Construction:	Machined components are manufactured using solid bar stock. Stainless steel balls, retaining rings and springs maximize corrosion resistance and extend service life. Nitrile (Nitrile Rubber) seals are standard. (temperature range of -40°F to 250°F (-40°C to 121°C)) Steel componentry is plated using ROHS Compliant Trivalent Chrome. Steel sleeve and steel tubular valve.
Safety Notes:	It is important to be safe when installing quick disconnect couplings into a pneumatic circuit. Never install a pneumatic coupling directly into an air tool, use a piece of hose that is at least 18" long, between the tool and the coupling, to prevent damage to the coupling. To protect the operator, safety devices, such as a safety check valve and safety cable should be installed in case there is a hose or coupling failure.
Additional Information:	For a selection guide, cross reference tables, safety info, fluid compatibility, and other general info, please see: Dixon Valve Quick Disconnect Guide.PDF

J-Series \| Automotive Interchange Coupler (Female Threads)

Part Number	Coupling Type	Body Size	Threads	Material	Length	Max. OD	Hex	Max. Working Pressure		Burst Pressure
Part Number	Coupling Type	Body Size	Threads	Material	Length	Max. OD	Hex	Brass Coupler & Brass Plug:	Brass Coupler & Steel Plug:	Brass Coupler & Brass Plug:	Brass Coupler & Steel Plug:
2JF1-B	Socket/Female	1/4"	1/8" - 27 Female NPTF	Brass	1.83" (46.5mm)	0.88" (22.4mm)	3/4"	300 PSI (20 bar)	500 PSI (35 bar)	10,500 PSI (724 bar)	11,500 PSI (793 bar)
2JF2-B	Socket/Female	1/4"	1/4" - 18 Female NPTF	Brass	2.04" (51.8mm)	0.88" (22.4mm)	3/4"	300 PSI (20 bar)	500 PSI (35 bar)	10,500 PSI (724 bar)	11,500 PSI (793 bar)
2JF3-B	Socket/Female	1/4"	3/8" - 18 Female NPTF	Brass	2.14" (54.4mm)	0.88" (22.4mm)	13/16"	300 PSI (20 bar)	500 PSI (35 bar)	10,500 PSI (724 bar)	11,500 PSI (793 bar)
3JF2	Socket/Female	3/8"	1/4" - 18 Female NPTF	Steel	2.25" (57.2mm)	1.06" (26.9mm)	7/8"	Steel Coupler & Steel Plug: 500 PSI (35 bar)		Steel Coupler & Steel Plug: 18,000 PSI (1,241 bar)
3JF3	Socket/Female	3/8"	3/8" - 18 Female NPTF	Steel	2.48" (63.0mm)	1.06" (26.9mm)	7/8"	Steel Coupler & Steel Plug: 500 PSI (35 bar)		Steel Coupler & Steel Plug: 18,000 PSI (1,241 bar)
3JF4	Socket/Female	3/8"	1/2" - 14 Female NPTF	Steel	2.61" (66.3mm)	1.06" (26.9mm)	1"	Steel Coupler & Steel Plug: 500 PSI (35 bar)		Steel Coupler & Steel Plug: 18,000 PSI (1,241 bar)
4FF3	Socket/Female	1/2"	3/8" - 18 Female NPTF	Steel	2.85" (72.5mm)	1.24" (31.4mm)	1"	Steel Coupler & Steel Plug: 500 PSI (35 bar)		Steel Coupler & Steel Plug: 15,500 PSI (1,070 bar)
4FF4	Socket/Female	1/2"	1/2" - 14 Female NPTF	Steel	3.06" (77.8mm)	1.24" (31.4mm)	1"	Steel Coupler & Steel Plug: 500 PSI (35 bar)		Steel Coupler & Steel Plug: 15,500 PSI (1,070 bar)
4FF3	Socket/Female	1/2"	3/4" - 14 Female NPTF	Steel	3.15" (79.9mm)	1.24" (31.4mm)	1-3/16"	Steel Coupler & Steel Plug: 500 PSI (35 bar)		Steel Coupler & Steel Plug: 15,500 PSI (1,070 bar)

J-Series \| Automotive Interchange Plug (Female Threads)

Part Number	Coupling Type	Body Size	Threads	Material	Length	Maximum OD	Hex	Working Pressure / Burst Pressure when Connected to:
J2F1	Plug/Male	1/4"	1/8" - 27 Female NPTF	Steel	1.34" (34.0mm)	0.65" (16.5mm)	9/16"	Brass Coupler & Steel Plug: Max. Working: 500 PSI (35 bar) \| Burst: 11,500 PSI (793 bar)
J2F2	Plug/Male	1/4"	1/4" - 18 Female NPTF	Steel	1.56" (39.6mm)	0.79" (20.1mm)	11/16"	Brass Coupler & Steel Plug: Max. Working: 500 PSI (35 bar) \| Burst: 11,500 PSI (793 bar)
J2F2-B	Plug/Male	1/4"	1/4" - 18 Female NPTF	Brass	1.56" (39.6mm)	0.79" (20.1mm)	11/16"	Brass Coupler & Brass Plug: Max. Working: 300 PSI (20 bar) \| Burst: 10,500 PSI (724 bar)
J2F3	Plug/Male	1/4"	3/8" - 18 Female NPTF	Steel	1.56" (39.6mm)	1.01" (25.7mm)	7/8"	Brass Coupler & Steel Plug: Max. Working: 500 PSI (35 bar) \| Burst: 11,500 PSI (793 bar)
J3F2	Plug/Male	3/8"	1/4" - 18 Female NPTF	Steel	1.75" (44.5mm)	0.79" (20.1mm)	11/16"	Steel Coupler & Steel Plug: Max. Working: 500 PSI (35 bar) \| Burst: 18,000 PSI (1,241 bar)
J3F3	Plug/Male	3/8"	3/8" - 18 Female NPTF	Steel	1.75" (44.5mm)	1.01" (25.7mm)	7/8"	Steel Coupler & Steel Plug: Max. Working: 500 PSI (35 bar) \| Burst: 18,000 PSI (1,241 bar)
J3F4	Plug/Male	3/8"	1/2" - 14 Female NPTF	Steel	1.91" (48.5mm)	1.16" (29.5mm)	1"	Steel Coupler & Steel Plug: Max. Working: 500 PSI (35 bar) \| Burst: 18,000 PSI (1,241 bar)
J4F3	Plug/Male	1/2"	3/8" - 18 Female NPTF	Steel	2.11" (53.6mm)	1.01" (25.7mm)	7/8"	Steel Coupler & Steel Plug: Max. Working: 500 PSI (35 bar) \| Burst: 10,000 PSI (690 bar)
J4F4	Plug/Male	1/2"	1/2" - 14 Female NPTF	Steel	2.26" (57.4mm)	1.16" (29.5mm)	1"	Steel Coupler & Steel Plug: Max. Working: 500 PSI (35 bar) \| Burst: 10,000 PSI (690 bar)
J4F6	Plug/Male	1/2"	3/4" - 14 Female NPTF	Steel	2.31" (58.7mm)	1.37" (34.8mm)	1-3/16"	Steel Coupler & Steel Plug: Max. Working: 500 PSI (35 bar) \| Burst: 10,000 PSI (690 bar)
