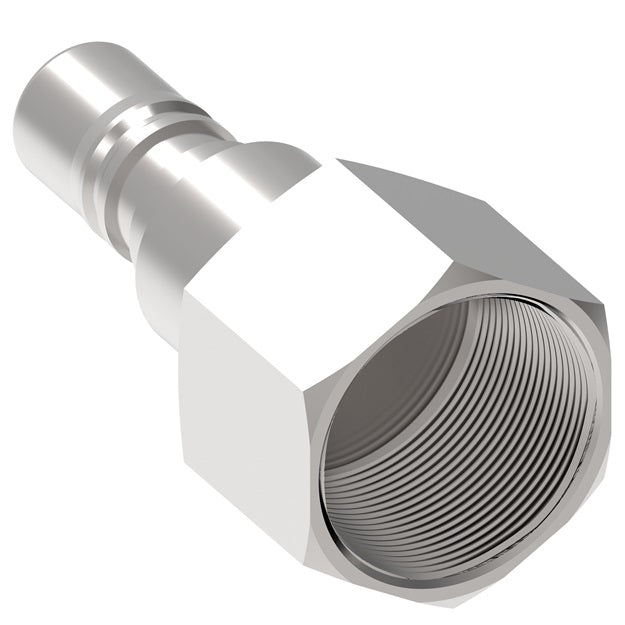

2L26 Hansen® by Danfoss | Pneumatic Quick Disconnect Coupling | 2RL Series | 1/2" Female NPTF x 1/4" Body Size | Plug | Steel
2L26 Hansen® by Danfoss | Pneumatic Quick Disconnect Coupling | 2RL Series | 1/2" Female NPTF x 1/4" Body Size | Plug | Steel
2L26 Hansen® by Danfoss | Pneumatic Quick Disconnect Coupling | 2RL Series | 1/2" Female NPTF x 1/4" Body Size | Plug | Steel
2L26 Hansen® by Danfoss | Pneumatic Quick Disconnect Coupling | 2RL Series | 1/2" Female NPTF x 1/4" Body Size | Plug | Steel

2L26 Hansen® by Danfoss | Pneumatic Quick Disconnect Coupling | 2RL Series | 1/2" Female NPTF x 1/4" Body Size | Plug | Steel

$23.22 - $23.22
$23.22
$23.22 - $23.22
$23.22

Hansen® by Danfoss
Pneumatic Quick Disconnect Coupling | 2RL Series

Quick Disconnect for Pneumatic Applications.

Danfoss' 2RL/3RL ring lock series quick disconnect pneumatic couplings have a unique interchange which Danfoss designed for use with compressed air.
Specifications for Variant SKU: 2L26 Danfoss
Brand: Hansen
Series: 2RL Series
Shape (Orientation): Straight
Material(s): Steel
Seal Material(s): Buna-N/Nitrile Rubber
Features:
  • High Flow capacity.
  • Push to connect with a ring lock sleeve.
  • Ring lock design prevents accidental disconnection.
  • To disconnect rotate sleeve 20 degrees.
Applications & Markets:
  • Shipyards
  • General Pneumatics
  • Mining
  • Marine
Materials:
  • Standard body material: Trivalent Plated Steel
  • Standard seal material: Buna-N
Series Coupling Size Max. Operating Pressure Min. Burst Pressure Rated Flow
2RL 1/4" 20 bar 300 psi 80 bar 1,200 psi 1,350 lpm 48 scfm
3RL 3/8" 20 bar 300 psi 80 bar 1,200 psi 2,250 lpm 80 scfm
Socket/Female
(Figure 1)
Plug/Male
(Figure 2)
2RL Series | Socket
Part Number Coupling Type Body Size Port Size Thread Figure Dimensions
A B Hex
2R11 Socket/Female 1/4" 1/8" 1/8-27 Male NPTF 1 1.91"
(48.5mm)		 1.06"
(26.9mm)		 0.88"
(22.4mm)
2R16 Socket/Female 1/4" 1/4" 1/4-18 Male NPTF 1 1.91"
(48.5mm)		 1.06"
(26.9mm)		 0.88"
(22.4mm)
2R21 Socket/Female 1/4" 3/8" 3/8-18 Male NPTF 1 2.16"
(54.9mm)		 1.06"
(26.9mm)		 0.88"
(22.4mm)
2R26 Socket/Female 1/4" 1/2" 1/2-14 Male NPTF 1 2.43"
(61.7mm)		 1.06"
(26.9mm)		 1.00"
(25.4mm)
2RL Series | Plugs
Part Number Coupling Type Body Size Port Size Thread Figure Dimensions
C D Hex
2L11 Plug/Male 1/4" 1/8" 1/8-27 Male NPTF 2 1.36"
(34.5mm)		 0.65"
(16.5mm)		 0.56"
(14.2mm)
2L16 Plug/Male 1/4" 1/4" 1/4-18 Male NPTF 2 1.54"
(39.1mm)		 0.79"
(20.1mm)		 0.69"
(17.5mm)
2L21 Plug/Male 1/4" 3/8" 3/8-18 Male NPTF 2 1.88"
(47.8mm)		 0.94"
(23.9mm)		 0.81"
(20.6mm)
2L26 Plug/Male 1/4" 1/2" 1/2-14 Male NPTF 2 2.18"
(55.4mm)		 1.15"
(29.2mm)		 1.00"
(25.4mm)
