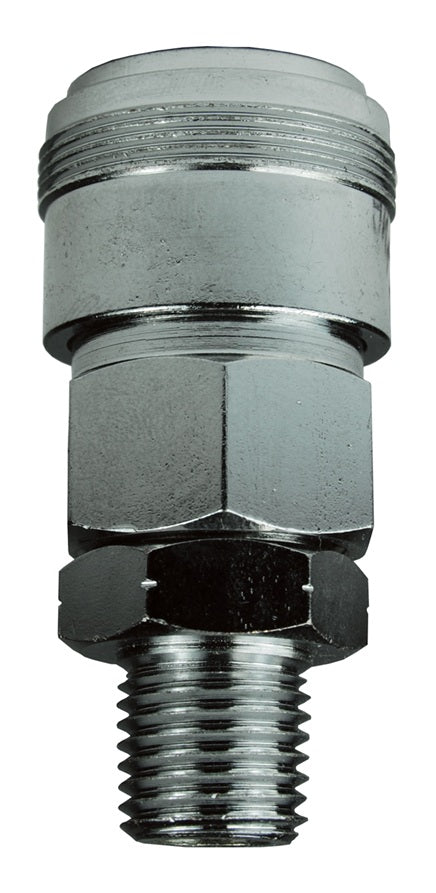

2NKBM2 by Dixon Valve | Pneumatic Quick Disconnect Coupling | NK-Series | 1/4" Male BSPT x 1/4" JapaneseIndustrial Interchange | Socket | Nitrile Seal | Steel

Save $1.16

$10.46

$10.46 - $10.46

$10.46

$9.30

$9.30 - $9.30

$9.30

Dixon Valve & Coupling
Pneumatic Coupling: NK-Series Japanese Industrial Interchange Coupler (Male Threads)

Can I get a discount on my purchase?

Our listed prices are our lowest possible price with current costing but when volumes/value are high enough sometimes we can pass on a discount from the manufacturer.

Some products have predefined quantity discounts that will apply automatically, those pages have a table near the price describing the discount teirs.

If you feel your purchase quantity of a particular product is very large and want us to investigate with the manufacturer please feel free to Contact Us.

What if my item is out of stock?

All customers get an email regarding the shipping time frame of their purchase, usually within the business day. If your item is in stock we will ship within 1 business day, otherwise, the email will contain a lead time. If you do not receive this email, we recommend checking your email's spam folder. If you have any questions at that point please do not hesitate to Contact Us or chat below!

Can I get free shipping?

Shipping will calculate as free instantly if your order value exceeds $5000.

Some exceptions apply.

Free Freight is only available for the Contiguous USA.

Specifications for Variant SKU: 2NKBM2 Dixon
Series:	NK-Series
Shape (Orientation):	Straight
Ends Configuration:	1/4in Female Japanese Industrial Interchange, 1/4in Male BSPP
Material(s):	Steel
Seal Material(s):	Buna-N/Nitrile Rubber

Compatibility & Interchange:	Japanese Industrial Interchange Pneumatic Coupling Nitto Kohki Hi-cupla 200, Rectus Series 13 and CEJN Series 315

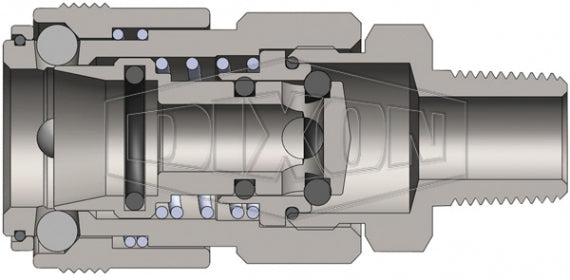

Construction:	Machined components are manufactured using solid steel bar stock. Stainless steel springs. Carbon steel balls and retaining rings. Nitrile (Nitrile Rubber) seals are standard. Providing a temperature range of -40°F to 250°F (-40°C to 121°C). Steel componentry is plated using ROHS Compliant Trivalent Chrome.
Safety Notes:	It is important to be safe when installing quick disconnect couplings into a pneumatic circuit. Never install a pneumatic coupling directly into an air tool, use a piece of hose that is at least 18" long, between the tool and the coupling, to prevent damage to the coupling. To protect the operator, safety devices, such as a safety check valve and safety cable should be installed in case there is a hose or coupling failure.
Additional Information:	For a selection guide, cross reference tables, safety info, fluid compatibility, and other general info, please see: Dixon Valve Quick Disconnect Guide.PDF

NK-Series \| Japanese Industrial Interchange Coupler (Male Threads)

Part Number	Coupling Type	Body Size	Threads	Material	Length	Max. OD	Hex	Max. Operating Pressure	Burst Pressure
2NKM2	Socket/Male	1/4"	1/4" - 18 Male NPT	Steel	2.12" (54.0mm)	1.02" (26.0mm)	3/4"	300 PSI	13500 PSI
2NKBM2	Socket/Male	1/4"	1/4" - 19 Male BSPT	Steel	2.12" (54.0mm)	1.02" (26.0mm)	3/4"	300 PSI	13500 PSI

NK-Series \| Japanese Industrial Interchange Plug (Male Threads)

Part Number	Coupling Type	Body Size	Threads	Material	Length	Max. OD	Hex	Max. Operating Pressure	Burst Pressure
NK2M2	Plug/Male	1/4"	1/4" - 18 Male NPT	Steel	1.54" (39.2mm)	0.52" (13.1mm)	5/8"	300 PSI	13500 PSI
NK2BM2	Plug/Male	1/4"	1/4" - 19 Male BSPT	Steel	1.54" (39.2mm)	0.52" (13.1mm)	5/8"	300 PSI	13500 PSI
