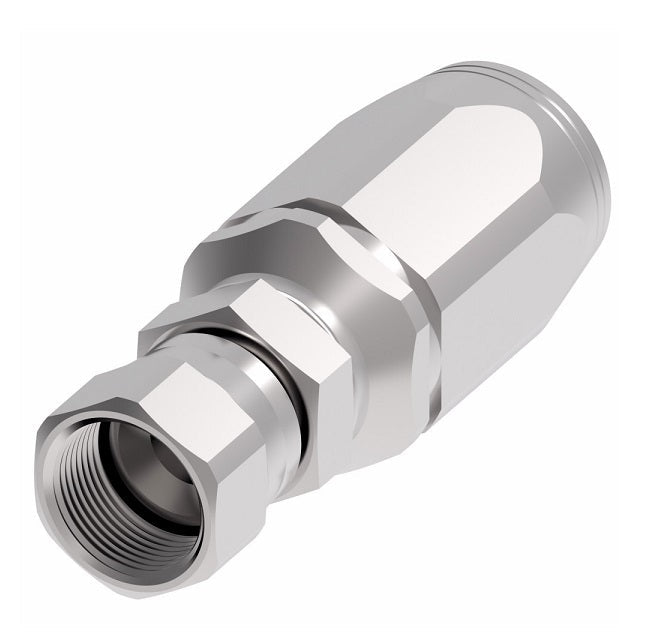

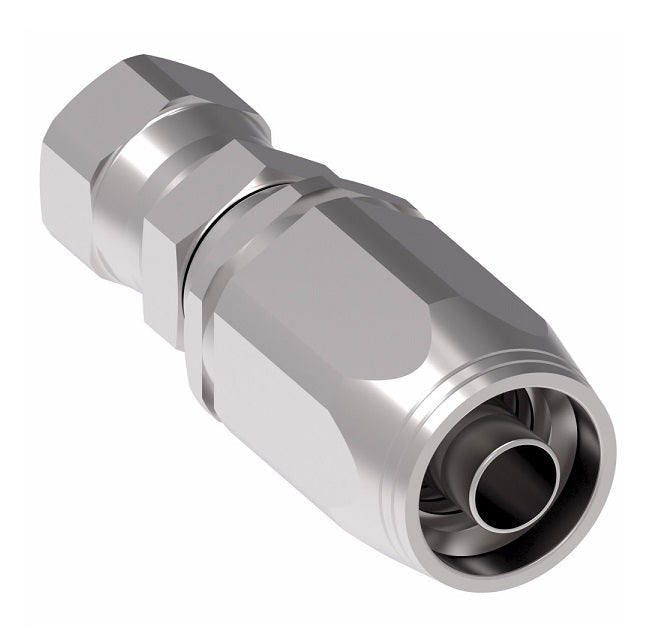

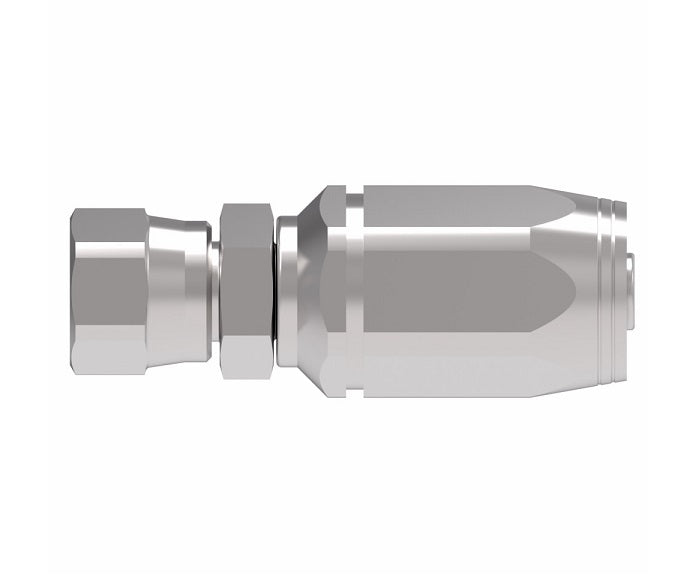

2RA16FJ16 Weatherhead by Danfoss | 37° JIC Swivel Field Attachable Fitting for 2 Wire Braided Hose | 2R Series | Complete Fitting | -16 Female 37° JIC Swivel x -16 Reusable Hose End | Steel
2RA16FJ16 Weatherhead by Danfoss | 37° JIC Swivel Field Attachable Fitting for 2 Wire Braided Hose | 2R Series | Complete Fitting | -16 Female 37° JIC Swivel x -16 Reusable Hose End | Steel
2RA16FJ16 Weatherhead by Danfoss | 37° JIC Swivel Field Attachable Fitting for 2 Wire Braided Hose | 2R Series | Complete Fitting | -16 Female 37° JIC Swivel x -16 Reusable Hose End | Steel
2RA16FJ16 Weatherhead by Danfoss | 37° JIC Swivel Field Attachable Fitting for 2 Wire Braided Hose | 2R Series | Complete Fitting | -16 Female 37° JIC Swivel x -16 Reusable Hose End | Steel

2RA16FJ16 Weatherhead by Danfoss | 37° JIC Swivel Field Attachable Fitting for 2 Wire Braided Hose | 2R Series | Complete Fitting | -16 Female 37° JIC Swivel x -16 Reusable Hose End | Steel

$90.85 - $90.85
$90.85
$90.85 - $90.85
$90.85

Weatherhead by Danfoss
Field Attachable Fitting for 2 Wire Braided Hose - 2R Series - Female 37° JIC Swivel - 45° Elbow
Specifications for Variant SKU: 2RA16FJ16 Danfoss
Shape (Orientation): Straight
Ends Configuration: 1in Female JIC, 1in Reusable Hose End
Material(s): Steel
Compatible with the following Series: H280 Series
Features:
  • Non-skive, two-piece crimp Fitting.
  • Clear silver hexavalent chromium-free plating.
  • Carbon steel material.
Component Part Numbers
Complete Fitting
Part Number 		Nipple Assembly
Part Number
Steel 		Reusable Socket
Part Number 		Thread Size Hose Size A D E&Oslash
2RA4FJ4 4103-4-4-4S 2RA4 7/16-20 -04 2.64" 1.47" 0.17"
2RA6FJ6 4103-4-6-6S 2RA6 9/16-18 -06 2.98" 1.64" 0.31"
2RA8FJ8 4103-4-8-8S 2RA8 3/4-16 -08 3.20" 1.68" 0.39"
2RA12FJ12 4103-4-12S 2RA12 1-1/16-12 -12 3.86" 1.99" 0.61"
2RA16FJ16 4103-4-16S 2RA16 1-5/16-12 -16 4.48" 2.43" 0.82"

Danfoss (Eaton - Aeroquip)

Danfoss is a global technology leader in power management solutions that make electrical, hydraulic and mechanical power operate more efficiently, reliably, safely and sustainably. Danfoss hydraulic pumps, motors, transmissions, valves, cylinders, controls, hose and fittings offer a unique combination of proven technology and innovative design that translates directly into reliable performance and enhanced uptime.
