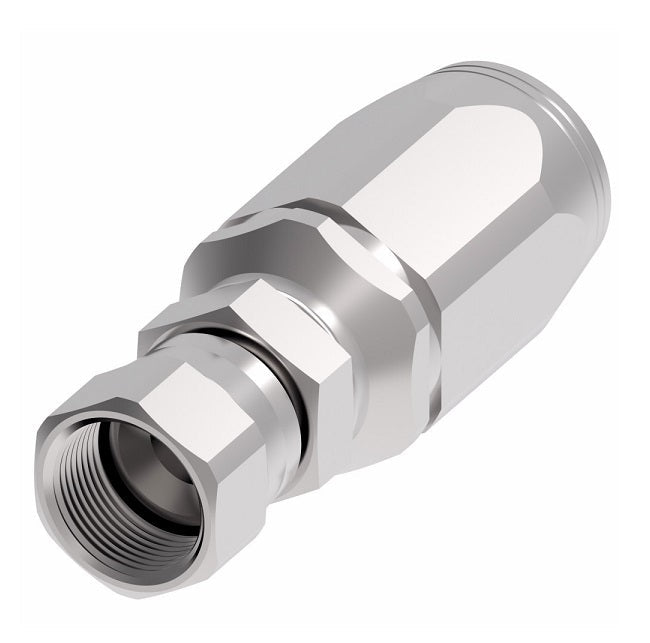

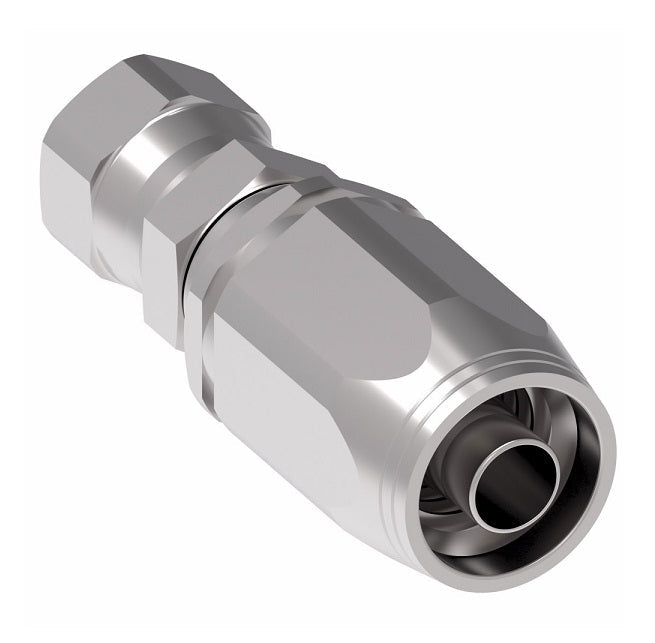

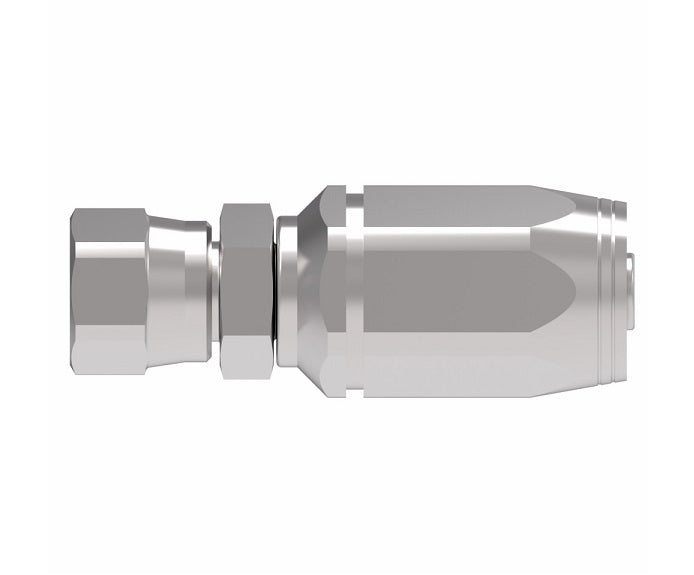

2RA6FJ6 Weatherhead by Danfoss | 37° JIC Swivel Field Attachable Fitting for 2 Wire Braided Hose | 2R Series | Complete Fitting | -06 Female 37° JIC Swivel x -06 Reusable Hose End | Steel
2RA6FJ6 Weatherhead by Danfoss | 37° JIC Swivel Field Attachable Fitting for 2 Wire Braided Hose | 2R Series | Complete Fitting | -06 Female 37° JIC Swivel x -06 Reusable Hose End | Steel
2RA6FJ6 Weatherhead by Danfoss | 37° JIC Swivel Field Attachable Fitting for 2 Wire Braided Hose | 2R Series | Complete Fitting | -06 Female 37° JIC Swivel x -06 Reusable Hose End | Steel
2RA6FJ6 Weatherhead by Danfoss | 37° JIC Swivel Field Attachable Fitting for 2 Wire Braided Hose | 2R Series | Complete Fitting | -06 Female 37° JIC Swivel x -06 Reusable Hose End | Steel

2RA6FJ6 Weatherhead by Danfoss | 37° JIC Swivel Field Attachable Fitting for 2 Wire Braided Hose | 2R Series | Complete Fitting | -06 Female 37° JIC Swivel x -06 Reusable Hose End | Steel

$26.66 - $26.66
$26.66
$26.66 - $26.66
$26.66

Weatherhead by Danfoss
Field Attachable Fitting for 2 Wire Braided Hose - 2R Series - Female 37° JIC Swivel - 45° Elbow
Specifications for Variant SKU: 2RA6FJ6 Danfoss
Shape (Orientation): Straight
Ends Configuration: 3/8in Female JIC, 3/8in Reusable Hose End
Material(s): Steel
Compatible with the following Series: H280 Series
Features:
  • Non-skive, two-piece crimp Fitting.
  • Clear silver hexavalent chromium-free plating.
  • Carbon steel material.
Component Part Numbers
Complete Fitting
Part Number 		Nipple Assembly
Part Number
Steel 		Reusable Socket
Part Number 		Thread Size Hose Size A D E&Oslash
2RA4FJ4 4103-4-4-4S 2RA4 7/16-20 -04 2.64" 1.47" 0.17"
2RA6FJ6 4103-4-6-6S 2RA6 9/16-18 -06 2.98" 1.64" 0.31"
2RA8FJ8 4103-4-8-8S 2RA8 3/4-16 -08 3.20" 1.68" 0.39"
2RA12FJ12 4103-4-12S 2RA12 1-1/16-12 -12 3.86" 1.99" 0.61"
2RA16FJ16 4103-4-16S 2RA16 1-5/16-12 -16 4.48" 2.43" 0.82"
