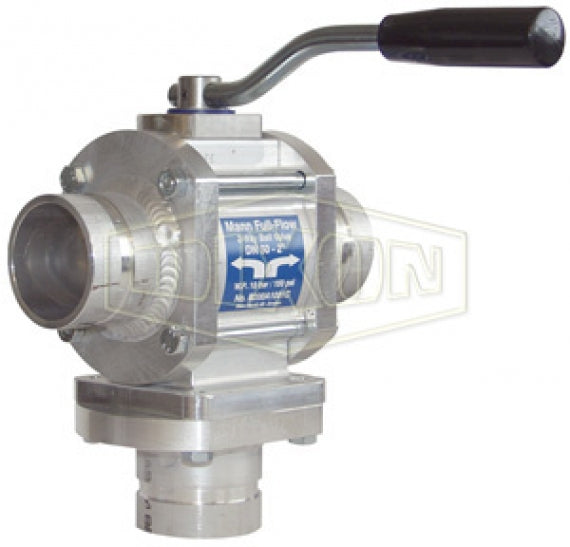

2WAYBV200VIC3 by Dixon Valve MannTek | Full Flow Ball Valve | Two-Way | 2" Grooved End x 2" Grooved End | Aluminum

2WAYBV200VIC3 by Dixon Valve MannTek | Full Flow Ball Valve | Two-Way | 2" Grooved End x 2" Grooved End | Aluminum

Save $96.98 Save $96.98
$872.82
$872.82 - $872.82
$872.82
$775.84
$775.84 - $775.84
$775.84

Dixon Valve & Coupling
MannTek Full Flow Ball Valve | Two-Way | Aluminum

Commonly used for switching compartments or tanks.
Specifications for Variant SKU: 2WAYBV200VIC3 Dixon
Brand: MannTek
Shape (Orientation): Straight
Ends Configuration: 2in Grooved End, 2in Grooved End, Some Ends Match
Material(s): Aluminum
Seal Material(s): FKM
Features:
  • High flow rate; low pressure drop.
  • Spindle can be disassembled even when ball valve is installed.
  • Three ports - one inlet and two outlets, valve directs the flow from the inlet to either of the two outlets.
Materials:
  • Wetted parts are aluminum and stainless steel.
  • FPM seals.
Specifications:
  • Working pressure: 150 PSI at ambient temperature 70°F (21°C).
  • Standard valve ports - female NPT, socket weld for Schedule 40 pipe and grooved.
Part Number End Type Size Bore
2WAYBV200 Female NPT x Female NPT 2" -
2WAYBV200-SH* Female NPT x Female NPT 2" -
2WAYBV300 Female NPT x Female NPT 3" -

2WAYBV200SW Socket Weld End x Socket Weld End 2" 2.390"
2WAYBV300SW Socket Weld End x Socket Weld End 3" 3.530"

2WAYBV200VIC3 Grooved End x Grooved End 2" -
2WAYBV300VIC3 Grooved End x Grooved End 3" -

* Supplied with straight handle

Dixon Valve & Coupling

Dixon Valve & Coupling

Dixon, founded in 1916, is a premier manufacturer and supplier of hose couplings, valves, dry disconnects, swivels, and other fluid transfer and control products. Our global reach includes a wide range of products for numerous industries including petroleum exploration, refining, transportation, chemical processing, food and beverage, steel, fire protection, construction, mining, and manufacturing.
