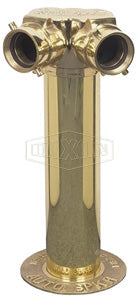

2WSA4025F Dixon Cast Brass Two Way Sidewalk Siamese Assembly (Auto-Sprinkler) - 4" Female NPT Outlet x Two 2-1/2" Female NST(NH) Inlets

2WSA4025F Dixon Cast Brass Two Way Sidewalk Siamese Assembly (Auto-Sprinkler) - 4" Female NPT Outlet x Two 2-1/2" Female NST(NH) Inlets

Save $1,021.52 Save $1,021.52
$2,553.80
$2,553.80 - $2,553.80
$2,553.80
$1,532.28
$1,532.28 - $1,532.28
$1,532.28

Dixon Fire Fittings
Two Way Sidewalk Siamese Assembly

UL listed, ULC listed, Factory Mutual approved.
Specifications for Variant SKU: 2WSA4025F Dixon
Shape (Orientation): Multi-Directional
Ends Configuration: 4in Female NPT, 2-1/2in Female NST
Material(s): Brass
Features:
  • Material: Cast Brass.
  • Complete unit consists of:
    (1) 21-133 90° Siamese body, double clapper
    (2) 12-127 pin plug plugs with chains
    (1) 23-404 sleeve
    (1) 24-405 escutcheon plate
Size A B C E F
4" x 2-1/2" x 2-1/2 9-1/4" 10-3/8" 10-3/4" 10-3/8" 6-5/8"
6" x 2-1/2" x 2-1/2" 11-1/4" 10-1/2" 11-3/4" 13" 7-1/4"
Part Number Branding Outlet (Two) Inlets Weight
(Lbs.)
2WSA4025F Auto-Sprinkler 4" Female NPT 2-1/2" Female NST(NH) 32.1300
2WSA4025F-SP Standpipe 4" Female NPT 2-1/2" Female NST(NH) 30.0200
2WSA6025F Auto-Sprinkler 6" Female NPT 2-1/2" Female NST(NH) 30.8900
2WSA6025F-SP Standpipe 6" Female NPT 2-1/2" Female NST(NH) 32.2100
Dixon Valve & Coupling

Dixon Valve & Coupling

Dixon, founded in 1916, is a premier manufacturer and supplier of hose couplings, valves, dry disconnects, swivels, and other fluid transfer and control products. Our global reach includes a wide range of products for numerous industries including petroleum exploration, refining, transportation, chemical processing, food and beverage, steel, fire protection, construction, mining, and manufacturing.
