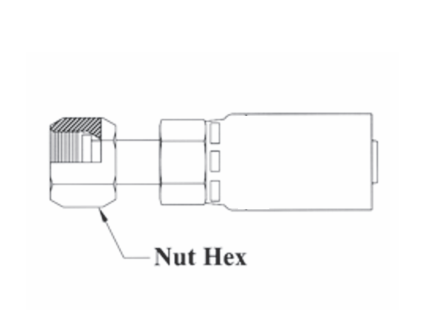

3-02404 Couplamatic 3 Series Coupling - O-Ring Face Seal (ORF) - Female Swivel - 1/8" Hose ID - 9/16-18 Thread Size

3-02404 by Couplamatic | 3 Series Coupling | 1/8" Hose ID x 9/16-18 Thread Size O-Ring Face Seal | ORF Female Swivel | Straight | Trivalent Zinc Plating

Save $0.50 Save $0.50
$4.53
$4.53 - $4.53
$4.53
$4.03
$4.03 - $4.03
$4.03

Couplamatic Systems Inc.
3 Series Thermoplastic Hose Couplings - O-Ring Face Seal (ORF) - Female Swivel
Specifications for Variant SKU: 3-02404 Couplamatic
Series: 3 Series
Shape (Orientation): Straight
Ends Configuration: 1/4in Female O-Ring Face Seal, 1/8in Hose Barb
Material(s): Steel
Compatible with the following Series: H7 Series  |   H7NC Series  |   H7TL Series  |   H7LNC Series  |   HS8 Series  |   HS8NC Series  |   R18 Series
Description:
  • Coupling may be used in Couplamatic Systems Inc., Synflex, and Parker Hannifin Swage machines.
  • Thermoplastic Couplings may be swaged or crimped.
  • Not for use on reduced OD 100R7.
  • Trivalent Zinc Plating
    		•
    Part Number Hose ID Thread Size Tube OD Nut Hex Die
    4540-    		 Pusher
    4599-    		 Cross Reference Part Numbers
    Parker 55 SYNFLEX 3903
    3-02404 1/8" 9/16-18 1/4" 11/16" 302 MP045 - -
    3-04404 1/4" 9/16-18 1/4" 11/16" 304 MP045 1JS55-4-4 3903-04404
    3-05406 5/16" 11/16-16 3/8" 13/16" 305 MP037 - -
    3-06406 3/8" 11/16-16 3/8" 13/16" 306 MP037 1JS55-6-6 3903-06406
    3-08408 1/2" 13/16-16 1/2" 15/16" 308 MP046 1JS55-8-8 3903-08408

    The cross reference is for thread identification and hose inside diameter only. Exact dimensions of the couplings may vary from manufacturer to manufacturer. Please check hose cut off factor, tube length, and tube drop carefully.
