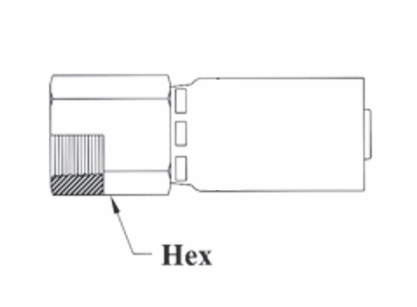

3-04204 Couplamatic 3 Series Coupling - NPTF - Female Solid - 1/4" Hose ID - 1/4-18 Thread Size

3-04204 by Couplamatic | 3 Series Coupling | 1/4" Hose ID x 1/4-18 Thread Size Female Solid NPTF | Straight | Trivalent Zinc Plating

Save $2.81 Save $2.81
$7.02
$7.02 - $7.02
$7.02
$4.21
$4.21 - $4.21
$4.21

Couplamatic Systems Inc.
3 Series Thermoplastic Hose Couplings - NPTF - Female Solid
Specifications for Variant SKU: 3-04204 Couplamatic
Series: 3 Series
Shape (Orientation): Straight
Ends Configuration: 1/4in Female NPTF, 1/4in Hose Barb
Material(s): Steel
Compatible with the following Series: H7 Series  |   H7NC Series  |   H7TL Series  |   H7LNC Series  |   HS8 Series  |   HS8NC Series  |   R18 Series
3 Series — Thermoplastic

3 3 Series Thermoplastic — NPTF Female Solid, Straight

3 is the NPTF Female Solid, Straight configuration of the 3 Series Thermoplastic system, terminating SAE 100R7, 100R8 and 100R18 thermoplastic hose.

1

What are the main product features?
  • Coupling may be used in Couplamatic Systems Inc., Synflex, and Parker Hannifin Swage machines.
  • Thermoplastic Couplings may be swaged or crimped
  • Not for use on reduced OD 100R7
  • Trivalent Zinc Plating
2

Which sizes are available?
Part Number Hose ID Pipe Size Thread Size Hex Size Die
4540-		 Pusher
4599-
3-04204 1/4" 1/4" 1/4-18 3/4" 304 FP002
