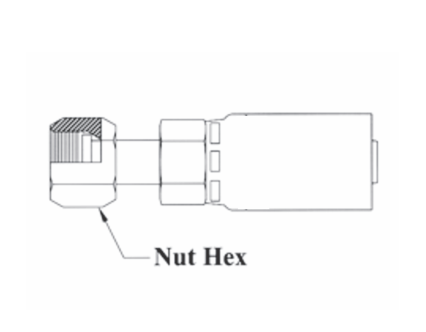

3-04404 Couplamatic 3 Series Coupling - O-Ring Face Seal (ORF) - Female Swivel - 1/4" Hose ID - 9/16-18 Thread Size

3-04404 by Couplamatic | 3 Series Coupling | 1/4" Hose ID x 9/16-18 Thread Size O-Ring Face Seal | ORF Female Swivel | Straight | Trivalent Zinc Plating

Save $0.94

$8.43

$8.43 - $8.43

$8.43

$7.49

$7.49 - $7.49

$7.49

Couplamatic Systems Inc.
3 Series Thermoplastic Hose Couplings - O-Ring Face Seal (ORF) - Female Swivel

Quantity

Specifications for Variant SKU: 3-04404 Couplamatic
Series:	3 Series
Shape (Orientation):	Straight
Ends Configuration:	1/4in Female O-Ring Face Seal, 1/4in Hose Barb
Material(s):	Steel
Compatible with the following Series:	H7 Series \| H7NC Series \| H7TL Series \| H7LNC Series \| HS8 Series \| HS8NC Series \| R18 Series

Description:
Coupling may be used in Couplamatic Systems Inc., Synflex, and Parker Hannifin Swage machines. Thermoplastic Couplings may be swaged or crimped. Not for use on reduced OD 100R7. Trivalent Zinc Plating

Part Number	Hose ID	Thread Size	Tube OD	Nut Hex	Die 4540-	Pusher 4599-	Cross Reference Part Numbers
Part Number	Hose ID	Thread Size	Tube OD	Nut Hex	Die 4540-	Pusher 4599-	Parker 55	SYNFLEX 3903
3-02404	1/8"	9/16-18	1/4"	11/16"	302	MP045	-	-
3-04404	1/4"	9/16-18	1/4"	11/16"	304	MP045	1JS55-4-4	3903-04404
3-05406	5/16"	11/16-16	3/8"	13/16"	305	MP037	-	-
3-06406	3/8"	11/16-16	3/8"	13/16"	306	MP037	1JS55-6-6	3903-06406
3-08408	1/2"	13/16-16	1/2"	15/16"	308	MP046	1JS55-8-8	3903-08408

The cross reference is for thread identification and hose inside diameter only. Exact dimensions of the couplings may vary from manufacturer to manufacturer. Please check hose cut off factor, tube length, and tube drop carefully.

Couplamatic Systems Inc

In the business for over 50 years, we're here to bring you the highest quality, most rigorously tested, American made hydraulic components on the market. We utilize state-of-the-art facilities and equipment to produce industry leading, quality hydraulic products. When you buy Couplamatic System Inc. products, you are buying precision and reliability.
