3-06246 Couplamatic 3 Series Coupling - NPSM - Female Swivel - 3/8" Hose ID - 3/8-18 Thread Size

3-06246 by Couplamatic | 3 Series Coupling | 3/8" Hose ID x 3/8-18 Thread Size Female Swivel NPSM | Straight | Trivalent Zinc Plating

Save $0.60 Save $0.60
$5.43
$5.43 - $5.43
$5.43
$4.83
$4.83 - $4.83
$4.83

Couplamatic Systems Inc.
3 Series Thermoplastic Hose Couplings - NPSM - Female Swivel
Specifications for Variant SKU: 3-06246 Couplamatic
Series: 3 Series
Shape (Orientation): Straight
Ends Configuration: 3/8in Female NPSM, 3/8in Hose Barb
Material(s): Steel
Compatible with the following Series: H7 Series  |   H7NC Series  |   H7TL Series  |   H7LNC Series  |   HS8 Series  |   HS8NC Series  |   R18 Series
Description:
  • Coupling may be used in Couplamatic Systems Inc., Synflex, and Parker Hannifin Swage machines.
  • Thermoplastic Couplings may be swaged or crimped.
  • Not for use on reduced OD 100R7.
  • Trivalent Zinc Plating
    		•

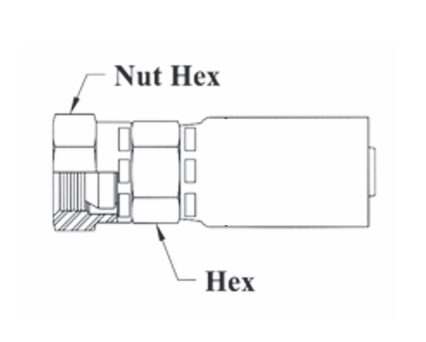

    Part Number Hose ID Pipe Size Thread Size Hex Size Nut Hex Die
    4540-    		 Pusher
    4599-    		 Cross Reference Part Numbers
    Parker 55 SYNFLEX 3903
    3-03244 3/16" 1/4" 1/4-18 5/8" 3/4" 303 FP002 - 3903-03244
    3-04244 1/4" 1/4" 1/4-18 5/8" 3/4" 304 FP002 10755-4-4 3903-04244
    3-06246 3/8" 3/8" 3/8-18 3/4" 7/8" 306 FP004 10755-6-6 3903-06246
    3-08248 1/2" 1/2" 1/2-14 1" 1" 308 FP018 10755-8-8 3903-08248

    The cross reference is for thread identification and hose inside diameter only. Exact dimensions of the couplings may vary from manufacturer to manufacturer. Please check hose cut off factor, tube length, and tube drop carefully.
