3-06446 Couplamatic 3 Series Coupling - O-Ring Face Seal (ORF) - 45° Female Swivel - 3/8" Hose ID - 11/16-16 Thread Size

3-06446 by Couplamatic | 3 Series Coupling | 3/8" Hose ID x 11/16-16 Thread Size O-Ring Face Seal | ORF Female Swivel | 45° Elbow | Trivalent Zinc Plating

Save $6.97 Save $6.97
$17.43
$17.43 - $17.43
$17.43
$10.46
$10.46 - $10.46
$10.46

Couplamatic Systems Inc.
3 Series Thermoplastic Hose Couplings - O-Ring Face Seal (ORF) - 45° Female Swivel
Specifications for Variant SKU: 3-06446 Couplamatic
Series: 3 Series
Shape (Orientation): 45 Degree
Ends Configuration: 3/8in Female O-Ring Face Seal, 3/8in Hose Barb
Material(s): Steel
Compatible with the following Series: H7 Series  |   H7NC Series  |   H7TL Series  |   H7LNC Series  |   HS8 Series  |   HS8NC Series  |   R18 Series
3 Series — Thermoplastic

3 3 Series Thermoplastic — O-Ring Face Seal (ORF), Female Swivel, 45° Elbow

3 is the O-Ring Face Seal (ORF), Female Swivel, 45° Elbow configuration of the 3 Series Thermoplastic system, terminating SAE 100R7, 100R8 and 100R18 thermoplastic hose.

1

What are the main product features?
  • Coupling may be used in Couplamatic Systems Inc., Synflex, and Parker Hannifin Swage machines.
  • Thermoplastic Couplings may be swaged or crimped
  • Not for use on reduced OD 100R7
  • Trivalent Zinc Plating
2

Which sizes are available?

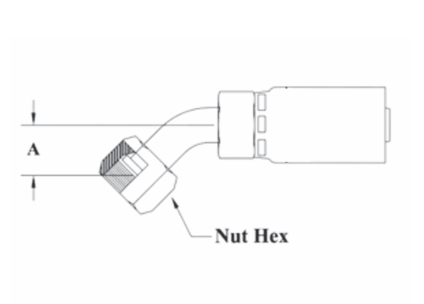

Part Number Hose ID Thread Size Tube OD A-DropInches Nut Hex Die
4540-		 Pusher
4599-		 Cross Reference Part Numbers
Parker 55 SYNFLEX 3903
3-04444 1/4" 9/16-18 1/4" .40" 11/16" 304 TP204 1J755-4-4 3903-04444
3-06446 3/8" 11/16-16 3/8" .44" 13/16" 306 TP206 1J755-6-6 3903-06446
3-08448 1/2" 13/16-16 1/2" .59" 15/16" 308 TP308 1J755-8-8 3903-08448
i
The cross reference is for thread identification and hose inside diameter only. Exact dimensions of the couplings may vary from manufacturer to manufacturer. Please check hose cut off factor, tube length, and tube drop carefully.
