3-06C76 Couplamatic 3 Series Coupling - Male Inverted Flare - 90° - 3/8" Hose ID - 5/8-18 Thread Size

3-06C76 by Couplamatic | 3 Series Coupling | 3/8" Hose ID x 5/8-18 Thread Size Inverted Flare Male | 90° Elbow | Trivalent Zinc Plating

Save $1.13 Save $1.13
$10.17
$10.17 - $10.17
$10.17
$9.04
$9.04 - $9.04
$9.04

Couplamatic Systems Inc.
3 Series Thermoplastic Hose Couplings - Male Inverted Flare - 45°
Specifications for Variant SKU: 3-06C76 Couplamatic
Series: 3 Series
Shape (Orientation): Straight
Ends Configuration: 3/8in Male Inverted Flare, 3/8in Hose Barb
Material(s): Steel
Compatible with the following Series: H7 Series  |   H7NC Series  |   H7TL Series  |   H7LNC Series  |   HS8 Series  |   HS8NC Series  |   R18 Series
Description:
  • Coupling may be used in Couplamatic Systems Inc., Synflex, and Parker Hannifin Swage machines.
  • Thermoplastic Couplings may be swaged or crimped.
  • Not for use on reduced OD 100R7.
  • Trivalent Zinc Plating
    		•

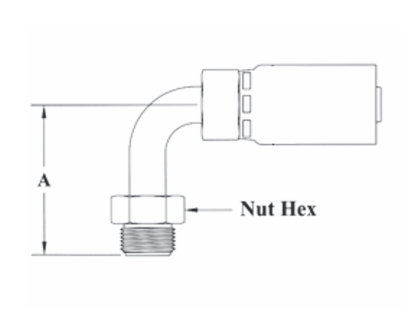

    Part Number Hose ID Thread Size Tube OD A-DropInches Nut Hex Die
    4540-    		 Pusher
    4599-    		 Cross Reference Part Numbers
    SYNFLEX 3903
    3-06C76 3/8" 5/8-18 3/8" 1.66" 5/8" 306 TP206 3903-06C76
