3-08850 Couplamatic 3 Series Coupling - JIC/SAE Dual Seat - 90° Female Swivel Long Drop - 1/2" Hose ID - 7/8-14 Thread Size

3-08850 by Couplamatic | 3 Series Coupling | 1/2" Hose ID x 7/8-14 Thread Size JIC/SAE Dual Seat Female Swivel Long Drop | 90° Elbow | Trivalent Zinc Plating

Save $1.80 Save $1.80
$16.20
$16.20 - $16.20
$16.20
$14.40
$14.40 - $14.40
$14.40

Couplamatic Systems Inc.
3 Series Thermoplastic Hose Couplings - JIC/SAE Dual Seat - 90° Female Swivel Long Drop
Specifications for Variant SKU: 3-08850 Couplamatic
Series: 3 Series
Shape (Orientation): 90 Degree
Ends Configuration: 5/8in Female JIC, 1/2in Hose Barb, 5/8in Female SAE 45 Flare
Material(s): Steel
Compatible with the following Series: H7 Series  |   H7NC Series  |   H7TL Series  |   H7LNC Series  |   HS8 Series  |   HS8NC Series  |   R18 Series
Description:
  • Coupling may be used in Couplamatic Systems Inc., Synflex, and Parker Hannifin Swage machines.
  • Thermoplastic Couplings may be swaged or crimped.
  • Not for use on reduced OD 100R7.
  • Trivalent Zinc Plating
    		•

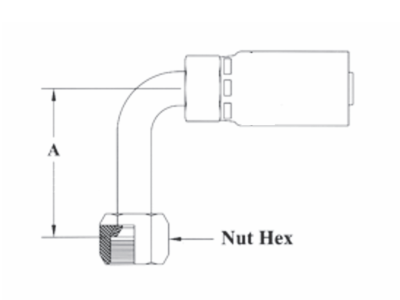

    Part Number Hose ID Thread Size Tube OD A-DropInches Nut Hex Die
    4540-    		 Pusher
    4599-    		 Cross Reference Part Numbers
    Parker 55 SYNFLEX 3903
    3-04844 1/4" 7/16-20 1/4" 1.80" 9/16" 304 TP204 - -
    3-04845 1/4" 1/2-20 5/16" 1.77" 5/8" 304 TP205 14155-5-4 3903-04845
    3-06846* 3/8" 9/16-18 3/8" 2.81" 11/16" 306 TP206 14155-6-6 3903-06846
    3-06848 3/8" 3/4-16 1/2" 2.50" 7/8" 306 TP208 14155-8-6 3903-06848
    3-08850 1/2" 7/8-14 5/8" 2.75 1" 308 TP310 14155-10-8 3903-08850

    *JIC Seat and thread only

    The cross reference is for thread identification and hose inside diameter only. Exact dimensions of the couplings may vary from manufacturer to manufacturer. Please check hose cut off factor, tube length, and tube drop carefully.

    >
