3/16" HS8 Couplamatic Thermoplastic Hydraulic Hose - Aramid Braid (SAE 100R8) - 3/16" ID - 250ft

3/16" HS8 by Couplamatic | Thermoplastic Hydraulic Hose | Aramid Braid | SAE 100R8 | 3/16" ID | 250ft

Save $411.11

$1,027.78

$1,027.78 - $1,027.78

$1,027.78

$616.67

$616.67 - $616.67

$616.67

Couplamatic Systems Inc.
Aramid Braid - HS8 Thermoplastic Hydraulic Hose - (SAE 100R8)

Package Quantity: 250 FT

Specifications for Variant SKU: 3/16" HS8 Couplamatic \| 250 \|
Series:	HS8 Series
Hose Color(s):	Black
Dash Size:	-3
Internal Diameter:	0.1875in
Outer Diameter:	0.433in
Tubing Construction:	Nylon
Cover Construction:	Polyurethane
Applicable Specs & Approvals:	SAE 100R8
Compatible with the following Series:	3 Series

SAE 100R8 — Thermoplastic

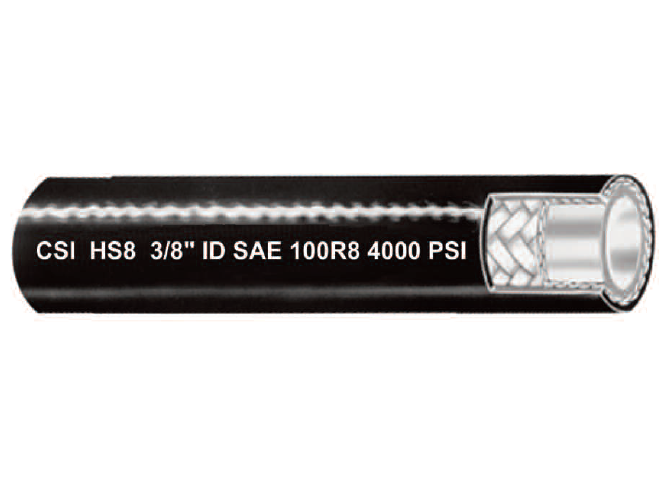

HS8 Aramid Braid Thermoplastic Hydraulic Hose

High pressure SAE 100R8 thermoplastic hose with an aramid braid and a perforated black polyurethane cover, for compact, lightweight hydraulic runs.

1

What is this hose used for?

High Pressure Hydraulics
Industrial
Agricultural

2

What are the key specifications?

SAE Rating

SAE 100R8

Cover

Black Polyurethane, Perforated

Tube

Nylon

Reinforcement

Aramid Braid

Temperature

-40°F to +212°F (-40°C to +100°C)

Size Range

3/16" to 1/2"

3

What are the main product features?

Aramid braid reinforcement — 100R8 working pressures at a fraction of the weight of wire braid hose.
Nylon tube — smooth bore with excellent fluid compatibility.
Perforated cover — vents permeated gases from the hose wall.
Tight bend radius — routes easily in confined spaces.

4

Which sizes are available?

Part Number	Hose ID	Hose OD	Working Pressure (lbs)	Min. Burst Pressure (lbs)	Min. Bend Radius	Weight per 100ft	Coil Footage
3/16" HS8	3/16"	0.433"	5,000 lbs.	20,000 lbs.	1.5"	5 lbs.	250ft
1/4" HS8	1/4"	0.508"	5,000 lbs.	20,000 lbs.	2"	6 lbs.	250ft
3/8" HS8	3/8"	0.650"	4,000 lbs.	16,000 lbs.	2.5"	8 lbs.	250ft
1/2" HS8	1/2"	0.815"	3,500 lbs.	14,000 lbs.	4"	13 lbs.	250ft

i

Sold as bulk hose by the reel or coil. Reel and coil footage for each size is listed in the size chart above; cut lengths and hose assemblies are available — contact us for pricing.

Couplamatic Systems Inc

In the business for over 50 years, we're here to bring you the highest quality, most rigorously tested, American made hydraulic components on the market. We utilize state-of-the-art facilities and equipment to produce industry leading, quality hydraulic products. When you buy Couplamatic System Inc. products, you are buying precision and reliability.
