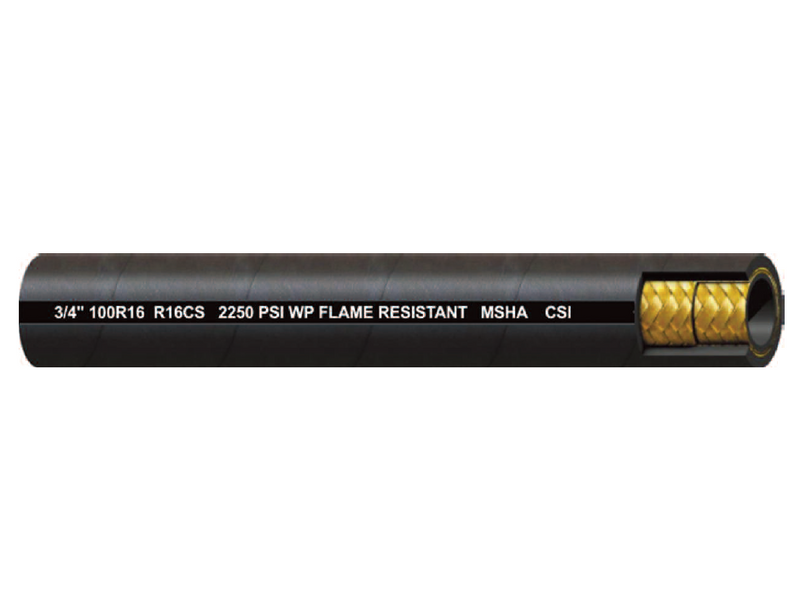

3/4" R16CS Couplamatic Import Two Wire Hi-Pressure Extremely Flexible Hydraulic Hose (SAE 100R16) - 3/4" ID - 250ft

3/4" R16CS by Couplamatic | Import Two Wire Hi-Pressure Extremely Flexible Hydraulic Hose | SAE 100R16 | 3/4" ID | 250ft

Save $96.83 Save $96.83
$871.50
$871.50 - $871.50
$871.50
$774.67
$774.67 - $774.67
$774.67

Couplamatic Systems Inc.
Two Wire Braid Hoses - R16CS Import Two Wire Hi-Pressure Extremely Flexible Hydraulic Hose - SAE 100R16

Package Quantity: 250 FT

Specifications for Variant SKU: 3/4" R16CS Couplamatic | 250 |
Series: R16CS Series
Hose Color(s): Black
Dash Size: -12
Internal Diameter: 0.75in
Outer Diameter: 1.09in
Applicable Specs & Approvals: Applicable MSHA Standards
Compatible with the following Series: Vari-Crimp Series  |   A Series  |   Grip Crimp Series
Applications: High Pressure Hydraulics, Industrial or Agricultural SAE Rating: SAE 100R16
Cover: Abrasion and Flame Resistant Cover, MSHA Approved Reinforcement: Two Wire Braids
Temperature: -40F to +212F (-40C to +100C)
Part Number Hose ID Hose OD Working Pressure
(lbs)		 Min. Burst Pressure
(lbs)		 Min. Bend Radius Weight per 100ft Reel Footage
3/4" R16CS 3/4" 1.090" 2,250 lbs. 9,000 lbs. 4.8" 54 lbs. 250ft
1 R16CS 1" 1.405" 2,000 lbs. 8,000 lbs. 6" 74 lbs. 200ft
See R16 Hose for sizes 1/4" thru 5/8".

**Crimps to 100R1AT One Wire Thin Cover Specifications - Tighter Bend Radius than R1 and R2*
