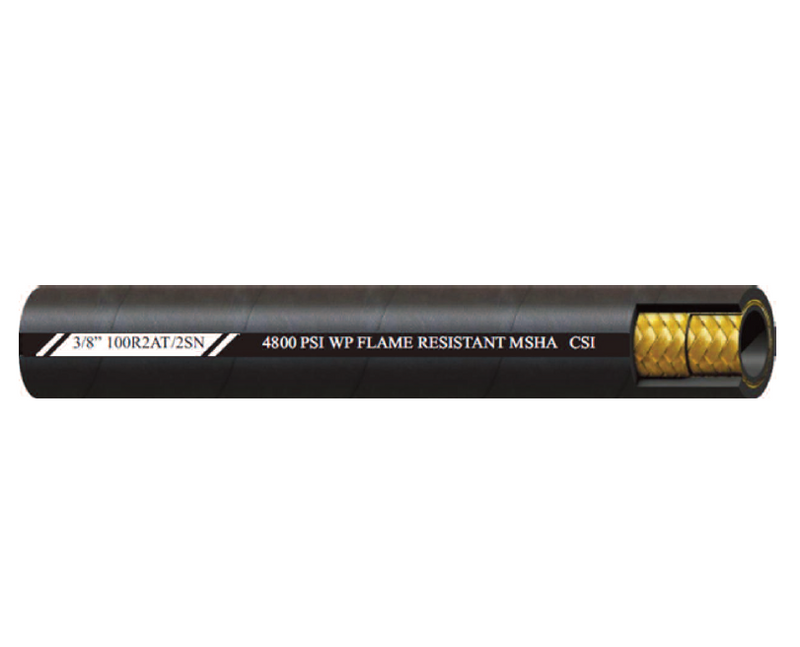

3/8" 2SN Couplamatic Import Thin Cover 2-Wire Hydraulic Hose (SAE 100R2AT/2SN) - 3/8" ID - 400ft

3/8" 2SN by Couplamatic | Import Thin Cover | 2-Wire Hydraulic Hose | SAE 100R2AT/2SN | 3/8" ID | 400ft

Save $540.45 Save $540.45
$1,351.12
$1,351.12 - $1,351.12
$1,351.12
$810.67
$810.67 - $810.67
$810.67

Couplamatic Systems Inc.
Two Wire Braid Hoses - 2SN Import Thin Cover 2-Wire Hydraulic Hose - SAE 100R2AT/2SN

Package Quantity: 400 FT

Specifications for Variant SKU: 3/8" 2SN Couplamatic | 400 |
Series: 2SN Series
Hose Color(s): Black
Dash Size: -6
Internal Diameter: 0.375in
Outer Diameter: 0.75in
Applicable Specs & Approvals: Applicable MSHA Standards
Compatible with the following Series: Vari-Crimp Series  |   A Series  |   Grip Crimp Series  |   GW Series
Applications: High Pressure Hydraulics, Industrial or Agricultural SAE Rating: SAE 100R2AT/2SN
Cover: Abrasion and Flame Resistant Cover, MSHA Approved Reinforcement: Two Wire Braids
Temperature: -40F to +212F (-40C to +100C)
Part Number Hose ID Hose OD Working Pressure
(lbs)		 Min. Burst Pressure
(lbs)		 Min. Bend Radius Weight per 100ft Reel Footage
1/4" 2SN 1/4" 0.593" 5,800 lbs. 23,200 lbs. 4" 24 lbs. 500ft
3/8" 2SN 3/8" 0.750" 4,800 lbs. 19,200 lbs. 5" 34 lbs. 400ft
1/2" 2SN 1/2" 0.875" 4,000 lbs. 16,000 lbs. 7" 43 lbs. 300ft
5/8" 2SN 5/8" 1.010" 3,625 lbs. 14,500 lbs. 8" 51 lbs. 250ft
3/4" 2SN 3/4" 1.158" 3,125 lbs. 12,500 lbs. 9.5" 61 lbs. 250ft
1" 2SN 1" 1.500" 2,400 lbs. 9,600 lbs. 12" 88 lbs. 200ft
1-1/4" 2SN 1-1/4" 1.862" 1,800 lbs. 7,200 lbs. 16.5" 129 lbs. Bulk
1-1/2" 2SN 1-1/2" 2.115" 1,300 lbs. 5,200 lbs. 20" 161 lbs. Bulk
2" 2SN 2" 2.625" 1,150 lbs. 4,600 lbs. 25" 198 lbs. Bulk
Couplamatic Systems Inc

Couplamatic Systems Inc

In the business for over 50 years, we're here to bring you the highest quality, most rigorously tested, American made hydraulic components on the market. We utilize state-of-the-art facilities and equipment to produce industry leading, quality hydraulic products. When you buy Couplamatic System Inc. products, you are buying precision and reliability.
