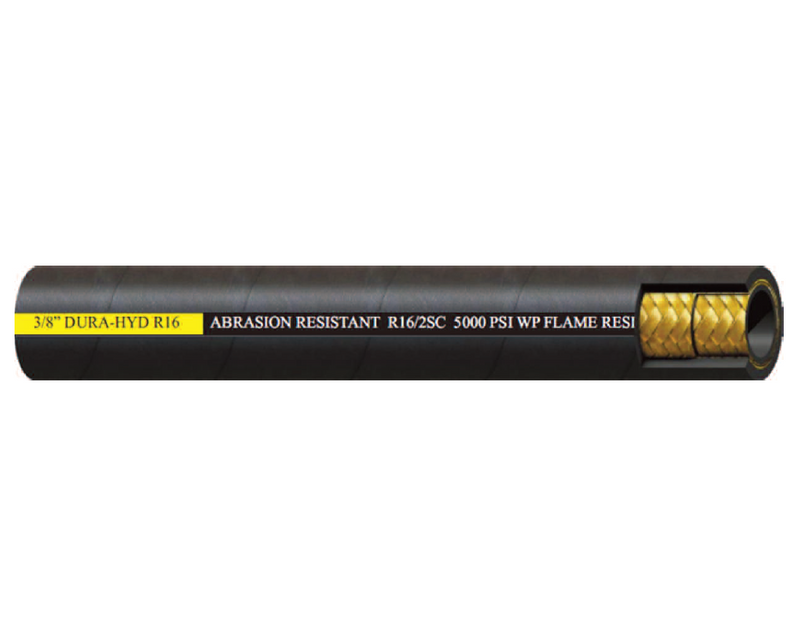

3/8" DH16 Couplamatic DURA-HYD Abrasion Resistant Extra Hi-Pressure Hydraulic Hose (SAE 100R16/2SC) - 3/8" ID - 400ft

3/8" DH16 by Couplamatic | DURA-HYD Abrasion Resistant | Extra Hi-Pressure Hydraulic Hose | SAE 100R16/2SC | 3/8" ID | 400ft

Save $111.73

$1,005.60

$1,005.60 - $1,005.60

$1,005.60

$893.87

$893.87 - $893.87

$893.87

Couplamatic Systems Inc.
Two Wire Braid Hoses - DH16 DURA-HYD Abrasion Resistant Extra Hi-Pressure Hydraulic Hose -(SAE 100R16/2SC)

Package Quantity: 400 FT

Quantity

Specifications for Variant SKU: 3/8" DH16 Couplamatic \| 400 \|
Series:	DH16 Series
Hose Color(s):	Black
Dash Size:	-6
Internal Diameter:	0.375in
Outer Diameter:	0.687in
Applicable Specs & Approvals:	Applicable MSHA Standards, SAE 100R16
Compatible with the following Series:	Vari-Crimp Series \| A Series \| Grip Crimp Series

Applications:	High Pressure Hydraulics, Industrial or Agricultural	SAE Rating:	SAE 100R16/2SC
Cover:	Flame Resistant, Extra Abrasion Resistant, MSHA approved.	Reinforcement:	Two Wire Braids
Temperature:	-40F to +212F (-40C to +100C)

Part Number	Hose ID	Hose OD	Working Pressure (lbs)	Min. Burst Pressure (lbs)	Min. Bend Radius	Weight per 100ft	Reel Footage
1/4" DH16	1/4"	0.530"	5,800 lbs.	23,200 lbs.	2"	18 lbs.	500ft
3/8" DH16	3/8"	0.687"	5,000 lbs.	20,000 lbs.	2.5"	27 lbs.	400ft
1/2" DH16	1/2"	0.812"	4,250 lbs.	17,000 lbs.	3.5"	35 lbs.	300ft
5/8" DH16	5/8"	0.937"	3,625 lbs.	14,500 lbs.	4"	40 lbs.	250ft
3/4" DH16	3/4"	1.090"	3,125 lbs.	12,500 lbs.	4.8"	54 lbs.	250ft
1" DH16	1"	1.405"	2,500 lbs.	10,000 lbs.	6"	74 lbs.	200ft

Couplamatic Systems Inc

In the business for over 50 years, we're here to bring you the highest quality, most rigorously tested, American made hydraulic components on the market. We utilize state-of-the-art facilities and equipment to produce industry leading, quality hydraulic products. When you buy Couplamatic System Inc. products, you are buying precision and reliability.
