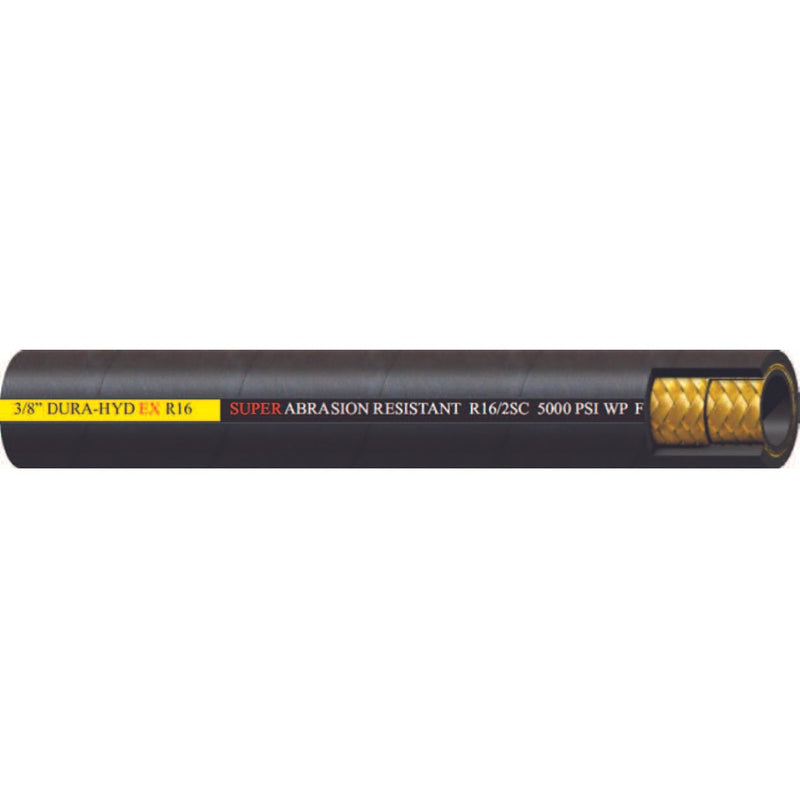

3/8" DHEX16 by Couplamatic | DURA-HYD EX Super Abrasion Resistant | R16/2SC Extra Hi-Pressure Hydraulic Hose | SAE 100R16/2SC | 3/8" ID | 400ft

Save $101.45 Save $101.45
Original price $1,014.52
Original price $1,014.52 - Original price $1,014.52
Original price $1,014.52
Current price $913.07
$913.07 - $913.07
Current price $913.07

Couplamatic Systems Inc.
Two Wire Braid Hoses - DHEX16 Ex Super Abrasion Resistant R16/2SC Extra Hi-Pressure Hydraulic Hose - (SAE 100R16/2SC)

Package Quantity: 400 FT

Can I get a discount on my purchase?

Our listed prices are our lowest possible price with current costing but when volumes/value are high enough sometimes we can pass on a discount from the manufacturer.

Some products have predefined quantity discounts that will apply automatically, those pages have a table near the price describing the discount teirs.

If you feel your purchase quantity of a particular product is very large and want us to investigate with the manufacturer please feel free to Contact Us.

What if my item is out of stock?

All customers get an email regarding the shipping time frame of their purchase, usually within the business day. If your item is in stock we will ship within 1 business day, otherwise, the email will contain a lead time. If you do not receive this email, we recommend checking your email's spam folder. If you have any questions at that point please do not hesitate to Contact Us or chat below!

Can I get free shipping?

Shipping will calculate as free instantly if your order value exceeds $5000.

Some exceptions apply.

Free Freight is only available for the Contiguous USA.

Specifications for Variant SKU: 3/8" DHEX16 Couplamatic | 400 |
Series: DHEX16 Series
Hose Color(s): Black
Dash Size: -6
Internal Diameter: 0.375in
Outer Diameter: 0.687in
Applicable Specs & Approvals: Applicable MSHA Standards, SAE 100R16
Compatible with the following Series: Vari-Crimp Series  |   A Series  |   Grip Crimp Series
Applications: High Pressure Hydraulics, Industrial or Agricultural SAE Rating: SAE 100R16/2SC
Cover: Flame Resistant Bi-Layer, SUPER Abrasion Resistant, MSHA Reinforcement: Two Wire Braids
Temperature: -40F to +212F (-40C to +100C)
Part Number Hose ID Hose OD Working Pressure
(lbs)
Min. Burst Pressure
(lbs)
Min. Bend Radius Weight per 100ft Reel Footage
1/4" DHEX16 1/4" 0.530" 5,800 lbs. 23,200 lbs. 2" 18 lbs. 500ft
3/8" DHEX16 3/8" 0.687" 5,000 lbs. 20,000 lbs. 2.5" 27 lbs. 400ft
1/2" DHEX16 1/2" 0.812" 4,250 lbs. 17,000 lbs. 3.5" 35 lbs. 300ft
5/8" DHEX16 5/8" 0.937" 3,625 lbs. 14,500 lbs. 4" 40 lbs. 250ft
3/4" DHEX16 3/4" 1.090" 3,125 lbs. 12,500 lbs. 4.8" 54 lbs. 250ft
1" DHEX16 1" 1.405" 2,500 lbs. 10,000 lbs. 6" 74 lbs. 200ft
