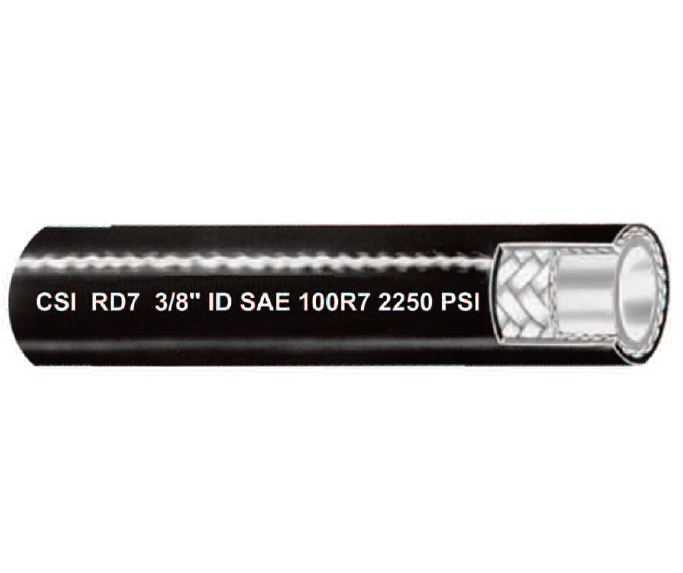

3/8" RD7 Couplamatic Thermoplastic Hydraulic Hose (Reduced OD) - Polyester Braid (SAE 100R7) - 3/8" ID - 250ft

3/8" RD7 by Couplamatic | Thermoplastic Hydraulic Hose | Reduced OD | Polyester Braid | SAE 100R7 | 3/8" ID | 250ft

Save $56.11 Save $56.11
$561.11
$561.11 - $561.11
$561.11
$505.00
$505.00 - $505.00
$505.00

Couplamatic Systems Inc.
Polyester Braid - RD7 Thermoplastic Hydraulic Hose (Reduced OD) - (SAE 100R7)

Package Quantity: 250 FT

Specifications for Variant SKU: 3/8" RD7 Couplamatic | 250 |
Series: RD7 Series
Hose Color(s): Black
Dash Size: -6
Internal Diameter: 0.375in
Outer Diameter: 0.618in
Tubing Construction: Nylon
Cover Construction: Polyurethane
Applicable Specs & Approvals: SAE 100R7
Compatible with the following Series: T Series
Applications: Medium Pressure Hydraulics, Industrial or Agricultural SAE Rating: SAE 100R7
Cover: Black Polyurethane, Perforated Tube: Nylon
Reinforcement: Polyester Braid Temperature: -40F to +212F (-40C to +100C)
Part Number Hose ID Hose OD Working Pressure
(lbs)		 Min. Burst Pressure
(lbs)		 Min. Bend Radius Weight per 100ft Coil Footage
1/4" RD7 1/4" 0.455" 2,750 lbs. 11,000 lbs. 1.5" 5 lbs. 250ft
3/8" RD7 3/8" 0.618" 2,250 lbs. 9,000 lbs. 2.0" 10 lbs. 250ft

>

Couplamatic Systems Inc

Couplamatic Systems Inc

In the business for over 50 years, we're here to bring you the highest quality, most rigorously tested, American made hydraulic components on the market. We utilize state-of-the-art facilities and equipment to produce industry leading, quality hydraulic products. When you buy Couplamatic System Inc. products, you are buying precision and reliability.
