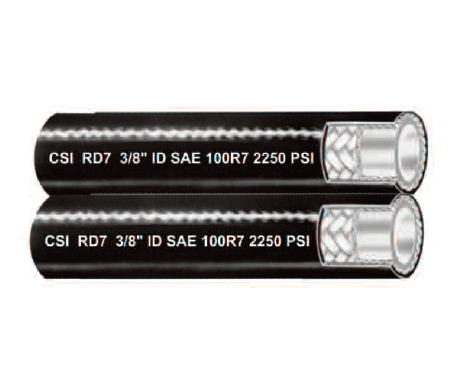

3/8" RD7TL Couplamatic Twin Line Thermoplastic Hydraulic Hose (Reduced OD) - Polyester Braid (SAE 100R7) - 3/8" ID - 250ft

3/8" RD7TL by Couplamatic | Twin Line Thermoplastic Hydraulic Hose | Reduced OD | Polyester Braid | SAE 100R7 | 3/8" ID | 250ft

Save $130.56 Save $130.56
$1,305.56
$1,305.56 - $1,305.56
$1,305.56
$1,175.00
$1,175.00 - $1,175.00
$1,175.00

Couplamatic Systems Inc.
Polyester Braid - RD7TL Twin Line Thermoplastic Hydraulic Hose (Reduced OD) - (SAE 100R7)

Package Quantity: 250 FT

Specifications for Variant SKU: 3/8" RD7TL Couplamatic | 250 |
Series: RD7TL Series
Hose Color(s): Black
Dash Size: -6
Internal Diameter: 0.375in
Outer Diameter: 0.618in
Tubing Construction: Nylon
Cover Construction: Polyurethane
Applicable Specs & Approvals: SAE 100R7
Compatible with the following Series: T Series
Applications: Medium Pressure Hydraulics, Industrial or Agricultural SAE Rating: SAE 100R7
Cover: Black Polyurethane, Perforated Tube: Nylon
Reinforcement: Polyester Braid Temperature: -40F to +212F (-40C to +100C)
Part Number Hose ID Hose OD Working Pressure
(lbs)		 Min. Burst Pressure
(lbs)		 Min. Bend Radius Weight per 100ft Coil Footage
1/4" RD7TL 1/4" 0.455" 2,750 lbs. 11,000 lbs. 1.5" 10 lbs. 250ft
3/8" RD7TL 3/8" 0.618" 2,250 lbs. 9,000 lbs. 2.0" 21 lbs. 250ft
