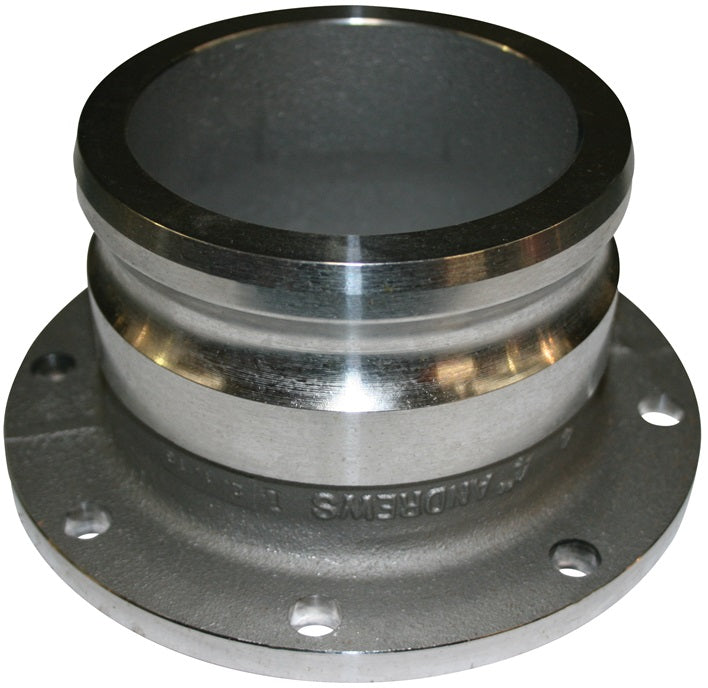

300-ALT-AL by Dixon Valve | Cam & Groove TTMA Flange Adapter | 3" Adapter x 3" TTMA Flange | Aluminum

Name: 300-ALT-AL by Dixon Valve | Cam & Groove TTMA Flange Adapter | 3" Adapter x 3" TTMA Flange | Aluminum
Brand: Dixon
SKU: 300-ALT-AL Dixon
Price: 53.05 USD
Availability: InStock

Save $5.18

$58.23

$58.23 - $58.23

$58.23

$53.05

$53.05 - $53.05

$53.05

Dixon Valve
Tank Truck | Cam & Groove Adapter x TTMA Flange

Designed for use with liquids.

Quantity

Specifications for Variant SKU: 300-ALT-AL Dixon
Brand:	Bayco
Shape (Orientation):	Straight
Cam Type:	Other
Ends Configuration:	3in Male Cam & Groove, 3in TTMA Flange
Material(s):	Aluminum

Construction:
Flange has flat face.
How It Works:
To make a connection, simply slide the adapter into the coupler and with normal hand pressure, press the cam levers down. Uncoupling is as quick and simple as coupling. Just lift the cam arms and remove the adapter.
Safety Note:
Under no circumstances should cam and groove couplings be used for compressed air or steam service! Pressure rating is based on the seal of the mating part. Pressure rating recommendations are based on the use of mating Dixon fittings at ambient temperature 70°F (21°C) with a standard seal installed.
Specifications:
Produced to interchange with all product produced to Commercial Item Description A-A-59326D.

356T6 Aluminum Part Number	316 Stainless Steel Part Number	Adapter x TTMA Flange
300-ALT-AL	300-ALT-SS	3" x 3"
3040ALTAL	-	3" x 4"
400-ALT-AL	400-ALT-SS	4" x 4"
600-ALT-AL	-	6" x 6"

Dixon Valve & Coupling

Dixon, founded in 1916, is a premier manufacturer and supplier of hose couplings, valves, dry disconnects, swivels, and other fluid transfer and control products. Our global reach includes a wide range of products for numerous industries including petroleum exploration, refining, transportation, chemical processing, food and beverage, steel, fire protection, construction, mining, and manufacturing.
