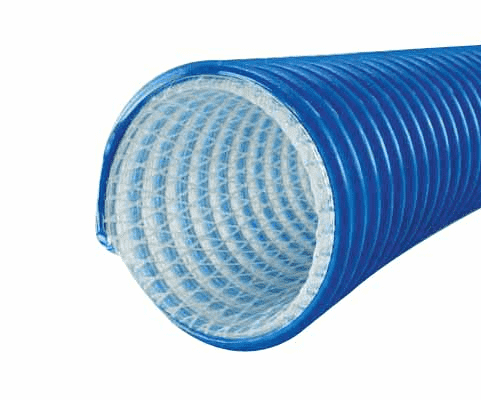

3000-0400-100 by Jason Industrial | 3000 Series | FDA USDA Material Handling Hose | S-omega | 65 PSI | 4" ID | 4.85" OD | Blue/Clear | Polyurethane | 100ft

Save $951.42

$3,329.96

$3,329.96 - $3,329.96

$3,329.96

$2,378.54

$2,378.54 - $2,378.54

$2,378.54

Jason Industrial Inc. Hose - Food Hose - 3000 Polyurethane FDA USDA Material Handling Hose - SΩ - Blue/Clear

Package Quantity: 100 FT

Specifications for Variant SKU: 3000-0400-100 Jason \| 100 \|
Series:	3000 Series
Hose Color(s):	Blue
Internal Diameter:	4in
Outer Diameter:	4.85in
Tubing Construction:	Polyurethane
Applicable Specs & Approvals:	Applicable FDA Requirements, Applicable USDA Requirements
Special Properties:	Ground Wire in Hose, Outer Helix Protection

SPECIFICATIONS

Other Features:
Application:	Heavy duty food grade material handling, railcar unloading, abrasive suction and transfer.	SAE Rating:	N/A
Other Ratings:	Meets FDA Requirements Approved by USDA for use in Meat & Poultry Plants	Tube:	Polyurethane
Reinforcement:	High Tensile Strength Polyester Yarn	Cover:	Clockwise PVC Helix with SΩ Ground Wire
Temperature Range:	-40 deg. F (-40 deg. C) to +140 deg. F (+60 deg. C)	Crimp Fittings:	N/A
Reusable Fittings:	N/A	Branding:	N/A
SΩ = Safety OHM Clear visual flow and higher transfer pressures Safety Ohm (SΩ) ground wire embedded into the hose wall to help prevent the build-up of static electricity. SΩ wire must be secured to ground to dissipate static electricity. -40 deg. F cold weather resistance with sub-zero flexibility Easy to drag with "Go-Glide" external clockwise PVC helix Vacuum up to 29" of Hg

Part Number	I.D.		O.D.		Reinforcement Braids	Max. Working Press. @ 68 deg. F		Vacuum @ 68 deg. F	Weight		Min. Bend Radius		Standard Length
	in.	mm	in.	mm		PSI	BAR	inHg	lb./ft.	KG/m	in.	mm	ft
Uncoupled
3000-0300-100	3"	76.20mm	3.80"	96.52mm	1	70 PSI	4.83 BAR	29.0 inHg	1.20 lb./ft.	1.79 KG/m	4.00"	101.60mm	100ft
3000-0400-100	4"	101.60mm	4.85"	123.19mm	1	65 PSI	4.48 BAR	29.0 inHg	1.60 lb./ft.	2.38 KG/m	6.00"	152.40mm	100ft
3000-0500-020	5"	127.00mm	5.80"	147.32mm	1	45 PSI	3.10 BAR	29.0 inHg	2.46 lb./ft.	3.66 KG/m	10.00"	254.00mm	20ft
3000-0500-050	5"	127.00mm	5.80"	147.32mm	1	45 PSI	3.10 BAR	29.0 inHg	2.46 lb./ft.	3.66 KG/m	10.00"	254.00mm	50ft
3000-0500-100	5"	127.00mm	5.80"	147.32mm	1	45 PSI	3.10 BAR	29.0 inHg	2.46 lb./ft.	3.66 KG/m	10.00"	254.00mm	100ft
3000-0600-050	6"	152.40mm	6.92"	175.77mm	1	40 PSI	2.76 BAR	29.0 inHg	2.86 lb./ft.	4.26 KG/m	12.00"	304.80mm	50ft
3000-0600-100	6"	152.40mm	6.92"	175.77mm	1	40 PSI	2.76 BAR	29.0 inHg	2.86 lb./ft.	4.26 KG/m	12.00"	304.80mm	100ft

Working pressure is temperature dependent. Jason Industrial Inc. disclaims any liability for use of their products in applications other than which they are designed.
