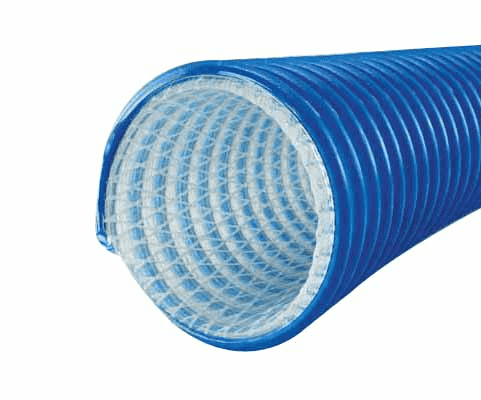

3000-0500-100 by Jason Industrial | 3000 Series | FDA USDA Material Handling Hose | S-omega | 45 PSI | 5" ID | 5.80" OD | Blue/Clear | Polyurethane | 100ft

Save $1,354.98

$4,742.42

$4,742.42 - $4,742.42

$4,742.42

$3,387.44

$3,387.44 - $3,387.44

$3,387.44

Jason Industrial Inc. Hose - Food Hose - 3000 Polyurethane FDA USDA Material Handling Hose - SΩ - Blue/Clear

Package Quantity: 100 FT

Specifications for Variant SKU: 3000-0500-100 Jason \| 100 \|
Series:	3000 Series
Hose Color(s):	Blue
Internal Diameter:	5in
Outer Diameter:	5.80in
Tubing Construction:	Polyurethane
Applicable Specs & Approvals:	Applicable FDA Requirements, Applicable USDA Requirements
Special Properties:	Ground Wire in Hose, Outer Helix Protection

SPECIFICATIONS

Other Features:
Application:	Heavy duty food grade material handling, railcar unloading, abrasive suction and transfer.	SAE Rating:	N/A
Other Ratings:	Meets FDA Requirements Approved by USDA for use in Meat & Poultry Plants	Tube:	Polyurethane
Reinforcement:	High Tensile Strength Polyester Yarn	Cover:	Clockwise PVC Helix with SΩ Ground Wire
Temperature Range:	-40 deg. F (-40 deg. C) to +140 deg. F (+60 deg. C)	Crimp Fittings:	N/A
Reusable Fittings:	N/A	Branding:	N/A
SΩ = Safety OHM Clear visual flow and higher transfer pressures Safety Ohm (SΩ) ground wire embedded into the hose wall to help prevent the build-up of static electricity. SΩ wire must be secured to ground to dissipate static electricity. -40 deg. F cold weather resistance with sub-zero flexibility Easy to drag with "Go-Glide" external clockwise PVC helix Vacuum up to 29" of Hg

Part Number	I.D.		O.D.		Reinforcement Braids	Max. Working Press. @ 68 deg. F		Vacuum @ 68 deg. F	Weight		Min. Bend Radius		Standard Length
	in.	mm	in.	mm		PSI	BAR	inHg	lb./ft.	KG/m	in.	mm	ft
Uncoupled
3000-0300-100	3"	76.20mm	3.80"	96.52mm	1	70 PSI	4.83 BAR	29.0 inHg	1.20 lb./ft.	1.79 KG/m	4.00"	101.60mm	100ft
3000-0400-100	4"	101.60mm	4.85"	123.19mm	1	65 PSI	4.48 BAR	29.0 inHg	1.60 lb./ft.	2.38 KG/m	6.00"	152.40mm	100ft
3000-0500-020	5"	127.00mm	5.80"	147.32mm	1	45 PSI	3.10 BAR	29.0 inHg	2.46 lb./ft.	3.66 KG/m	10.00"	254.00mm	20ft
3000-0500-050	5"	127.00mm	5.80"	147.32mm	1	45 PSI	3.10 BAR	29.0 inHg	2.46 lb./ft.	3.66 KG/m	10.00"	254.00mm	50ft
3000-0500-100	5"	127.00mm	5.80"	147.32mm	1	45 PSI	3.10 BAR	29.0 inHg	2.46 lb./ft.	3.66 KG/m	10.00"	254.00mm	100ft
3000-0600-050	6"	152.40mm	6.92"	175.77mm	1	40 PSI	2.76 BAR	29.0 inHg	2.86 lb./ft.	4.26 KG/m	12.00"	304.80mm	50ft
3000-0600-100	6"	152.40mm	6.92"	175.77mm	1	40 PSI	2.76 BAR	29.0 inHg	2.86 lb./ft.	4.26 KG/m	12.00"	304.80mm	100ft

Working pressure is temperature dependent. Jason Industrial Inc. disclaims any liability for use of their products in applications other than which they are designed.

Jason Industrial

Founded in 1958 in Fairfield, NJ, Jason Industrial quickly gained a solid reputation as a go to source for both industrial hose and power transmission belts. Jason Industrial offers a comprehensive portfolio of industrial hose, couplings and accessories along with hydraulic hose, fittings and crimping equipment.
