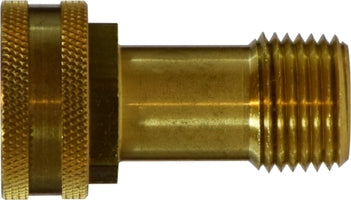

30047 (30-047) Midland Garden Hose Fitting - Female x Male Swivel - 3/4" Female GHT x 1/4" Male NPTF - Brass

30047 by Midland | Garden Hose Fitting | Swivel | 3/4" Female GHT x 1/4" Male NPTF | Brass

Save $3.46 Save $3.46
$8.65
$8.65 - $8.65
$8.65
$5.19
$5.19 - $5.19
$5.19

Midland Industries
Brass Fitting - Garden Hose Fitting - Female x Male Swivel - Brass

Washer Included

Inventory @ Manufacturers Warehouse: 1249 Units
Specifications for Variant SKU: 30047 Midland
Shape (Orientation): Straight
Ends Configuration: 3/4in Female GHT, 1/4in Male NPTF
Material(s): Brass, Rubber
Temperature and Working Pressure Ranges:
  • From +350°F to +100°F at 75 PSI maximum or the recommended working pressure of the garden hose. (Not to exceed 150 PSI.)
  • Note: All female connector ends should have a rubber washer inserted prior to usage.
  • Male garden hose threads are all 3/4" with an outside diameter of 1.0625 and 11-1/2" threads per inch.
  • Washers included are #30150B black rubber washers.
Crossover Series:
504 89GH W1 62H4 88GH W1
Part Number Female GHT x Male NPTF A Hex Approx. Weight
(Lbs.)
30047
(30-047) 		3/4" x 1/4" 2.04" 0.75" 0.13
30048
(30-048) 		3/4" x 3/8" 2.06" 0.75" 0.14
30049
(30-049) 		3/4" x 1/2" 2.06" 0.87" 0.18
Midland Industries

Midland Industries

Midland Industries is a family of brands recognizable industry wide. Midland is a supplier of brass fittings, valves, and accessories for hose, pipe and tube in brass, bronze, stainless steel, steel, malleable iron, and plastics.
