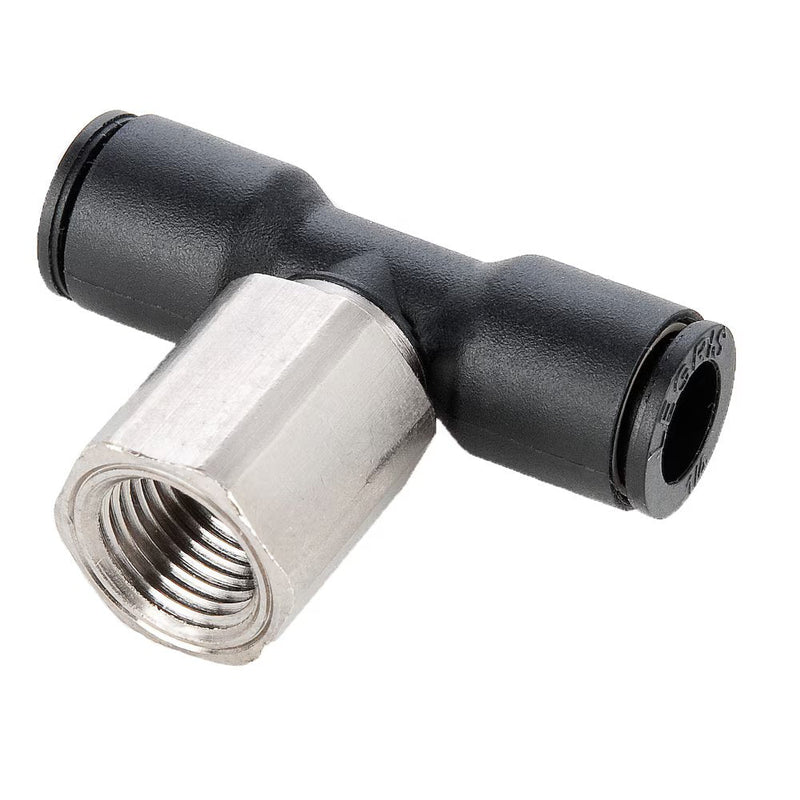

3008 04 11 by Parker | LF3000® Push-to-Connect Fittings | 5/32" Push-to-Connect x 1/8" Female NPT Thread | 13 mm Hex | 1.10" Length | Tee | Nylon | Pack of 10

Save $45.71

$114.28

$114.28 - $114.28

$114.28

$68.57

$68.57 - $68.57

$68.57

by Parker Hannifin
LF3000® Push-to-Connect Fittings:3008 - female branch tee fractional inch tube to NPT

Package Quantity: 10 Units

Specifications for Variant SKU: 3008 04 11 Parker \| 10 \|
Brand:	LF 3000®
Series:	3008 Series
Shape (Orientation):	Tee
Material(s):	Nylon, Nickel-Plated Brass
Special Properties:	Silicone Free, Corrosion Resistance, Chemical Resistance

Product Features:	Stainless steel grab ring Glass-reinforced nylon 6.6 body Nitrile D-seal Nylon release button Corrosion and chemical resistance NPT, BSPT, BSPP, and metric threads Silicone-Free
Markets:	Pneumatic Industrial Automation Robotic Printing Packaging Textile
Applications:	Air Cutting Fluids Inert Gases Vacuum
Pressure Range	Up to 290 psi (20 bar) 3/16" diameter up to 260 psi (8 bar) Maximum working pressure and temperature range are dependent on the type of tubing used
Temperature Range	-4° to +175° F (-20° to +80° C) 3/16" diameter 5° to +155° F (-15° to +68° C)
Vacuum Capability	28" Hg


Part Number	ØD	NPT (C)	F	G	H	E	L	Oz
3008 53 11	1/8"	1/8"	13 mm	.34"	.99"	.37"	.57"	1.02 Oz
3008 04 11	5/32"	1/8"	13 mm	.33"	.91"	.37"	.55"	.43 Oz
3008 04 14	5/32"	1/4"	16 mm	.33"	1.08"	.55"	.55"	.74 Oz
3008 56 11	1/4"	1/8"	13 mm	.43"	1.02"	.37"	.71"	.55 Oz
3008 56 14	1/4"	1/4"	16 mm	.43"	1.18"	.55"	.71"	.84 Oz
3008 08 11	5/16"	1/8"	13 mm	.53"	1.24"	.37"	.91"	.66 Oz
3008 08 14	5/16"	1/4"	16 mm	.53"	1.40"	.55"	.91"	1.01 Oz
3008 60 14	3/8"	1/4"	16 mm	.63"	1.60"	.55"	1.04"	1.13 Oz
3008 62 18	1/2"	3/8"	22 mm	.87"	1.88"	.65"	1.38"	2.94 Oz

Parker Fluid System Connectors Division

Parker Fluid System Connectors Division delivers quality and service from design to delivery. Their engineers leverage advanced technology to create prototypes, refine designs, and improve manufacturing efficiencies, offering tailored solutions. ISO 9001 certified and focused on sustainability, they utilize recyclable materials and a brass chip recycling program to protect the environment and control costs. Flexible assembly, packaging, and shipping systems support diverse needs, including kitting and custom labeling, ensuring high-quality products and outstanding customer support.
