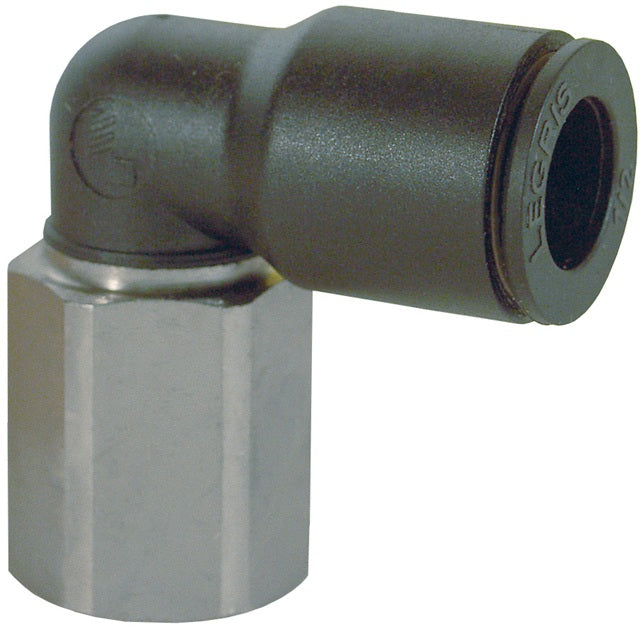

30096218 by Dixon Valve | Legris Push-In Fitting | Female Connector | 90° Elbow | 1/2" Tube OD x 3/8" Female NPT | Nylon / Nickel-Plated Brass

Save $10.10

$25.25

$25.25 - $25.25

$25.25

$15.15

$15.15 - $15.15

$15.15

Dixon Valve & Coupling
Legris Push-In Fitting | Female Connector | 90° Elbow | Female NPT x Tube End

Gripping Ring Technology provides a positive seal: sealing and holding is accomplished instantaneously. No tools required.

Specifications for Variant SKU: 30096218 Dixon
Brand:	Legris
Shape (Orientation):	90 Degree
Ends Configuration:	1/2in Push-to-Connect, 3/8in Female NPT
Material(s):	Nylon, Nickel-Plated Brass
Seal Material(s):	Buna-N/Nitrile Rubber

Use:
Compatible tubing: semi-rigid nylon, polyurethane and polyethylene tube. Vacuum capability: vacuum of 28" Hg (99% vacuum).
Features:
Positive seal: sealing and holding is accomplished instantaneously. Reusable: connect and disconnect numerous times. Full flow: fitting seals on outside diameter of tubing. Pre-applied thread sealant on all tapered male pipe threads.
Construction:
Nickel-plated brass threads. Black body is glass-filled nylon. Nitrile Rubber D seal. Polypropylene release button. Silicone free.
Specifications:
Working pressure: 290 PSI at ambient temperature Temperature range: -4°F to 175°F (-20°C to 79°C) Vacuum capability: vacuum of 28" Hg (99% vacuum)
Installation:
Quick connect and disconnect, no tools required. To connect, simply push tubing in. To disconnect, press the release ring towards the fitting and pull tubing out.
Safety Notes:
Maximum circuit pressure depends equally on the type and diameter of the tube used. Pressure rating given at ambient temperature 70°F/21°C.


Part Number	Tube O.D.	Female NPT
30095311	1/8"	1/8"
30090414	5/32"	1/4"
30095611	1/4"	1/8"
30095614	1/4"	1/4"
30090811	5/16"	1/8"
30090814	5/16"	1/4"
30096014	3/8"	1/4"
30096218	1/2"	3/8"
