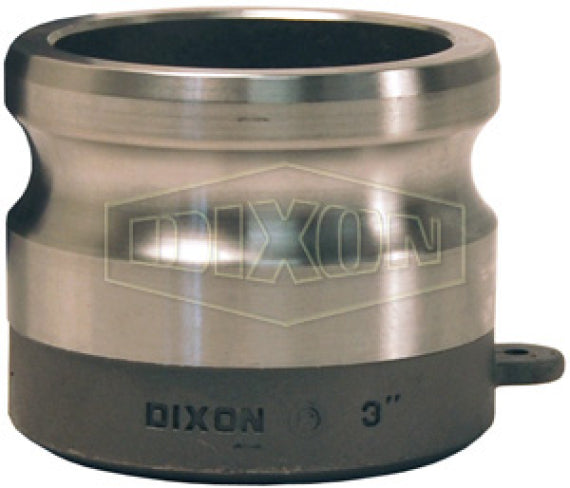

300AWBPSTSS by Dixon Valve | Cam & Groove Adapter for Welding | 3" Adapter Butt Weld x Schedule 40 Pipe/Socket Weld to Nominal Tubing | 316 Stainless Steel

300AWBPSTSS by Dixon Valve | Cam & Groove Adapter for Welding | 3" Adapter Butt Weld x Schedule 40 Pipe/Socket Weld to Nominal Tubing | 316 Stainless Steel

Save $91.01 Save $91.01
$227.53
$227.53 - $227.53
$227.53
$136.52
$136.52 - $136.52
$136.52

Dixon Valve
Cam & Groove Adapter for Welding | Adapter Butt Weld x Schedule 40 Pipe/Socket Weld to Nominal Tubing

Designed for use with liquids.
Specifications for Variant SKU: 300AWBPSTSS Dixon
Shape (Orientation): Straight
Ends Configuration: 3in Weld End, 3in Weld End, Some Ends Match
Material(s): 316 Stainless Steel
Safety Notes:
  • Dixon and Boss-Lock cam & groove couplings do not interchange in the 8" size.
  • Under no circumstances should cam and groove couplings be used for compressed air or steam service!
  • Final weld preparation, as with all weld fittings, is the responsibility of the welder.
  • Pressure rating recommendations are based on the use of mating Dixon fittings at ambient temperature 70°F / 21°C with a standard seal installed. For use at elevated temperature or other unusual operating conditions, consult Dixon.
Specifications:
  • Produced to interchange with all product produced to Commercial Item Description A-A-59326D.
356T6 Aluminum
Part Number		 316 Stainless Steel
Part Number		 Size Bore Maximum Operating Pressure
- 75AWBPSTSS 3/4" 0.765" 250 PSI
- 100AWBPSTSS 1" 1.015" 250 PSI
150AWBPSTAL 150AWBPSTSS 1-1/2" 1.515" 250 PSI
200AWBPSTAL 200AWBPSTSS 2" 2.015" 250 PSI
300AWBPSTAL 300AWBPSTSS 3" 3.015" 125 PSI
400AWBPSTAL 400AWBPSTSS 4" 4.015" 100 PSI
500AWBPSTAL 500AWBPSTSS 5" 5.015" 75 PSI
600AWBPSTAL 600AWBPSTSS 6" 6.020" 75 PSI
801AWBPSTAL - 8"
Boss-Lock		 8.035" 50 PSI
