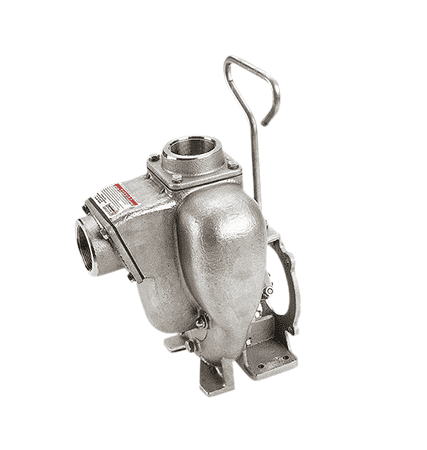

300PO-SS Banjo 3" 316 Stainless Steel Pump Only with 1" Shaft Sleeve

300PO-SS by Banjo | Centrifugal Pumps | 3" Pump Only with 1" Shaft Sleeve | 316 Stainless Steel

Save $303.35 Save $303.35
$3,435.28
$3,435.28 - $3,435.28
$3,435.28
$3,131.93
$3,131.93 - $3,131.93
$3,131.93

PRODUCT DESCRIPTION

Banjo Self-Priming Centrifugal Pumps - 3" 316 Stainless Steel Pumps with Gas Engines & Replacement Parts
Can I get a discount on my purchase?

Our listed prices are our lowest possible price with current costing but when volumes/value are high enough sometimes we can pass on a discount from the manufacturer.

Some products have predefined quantity discounts that will apply automatically, those pages have a table near the price describing the discount teirs.

If you feel your purchase quantity of a particular product is very large and want us to investigate with the manufacturer please feel free to Contact Us.

What if my item is out of stock?

All customers get an email regarding the shipping time frame of their purchase, usually within the business day. If your item is in stock we will ship within 1 business day, otherwise, the email will contain a lead time. If you do not receive this email, we recommend checking your email's spam folder. If you have any questions at that point please do not hesitate to Contact Us or chat below!

Can I get free shipping?

Shipping will calculate as free instantly if your order value exceeds $5000.

Some exceptions apply.

Free Freight is only available for the Contiguous USA.

Specifications for Variant SKU: 300PO-SS Banjo

SPECIFICATIONS

Application: Fluids, Agriculture, Industrial
Pump Features:
  • Carbon ceramic seal consists of 316 stainless steel cup and spring with FKM (viton type) Elastomer
  • All 316 stainless steel wettable internal components: Impeller, Sleeve, Wear plate, Fasteners
  • 316 stainless steel housing
  • Dynamically balanced impeller
Notes:
  • NOTE: Engine warranty service available at authorized Briggs & Stratton® and Honda® dealers.
  • CAUTION-WARNING: Please do not run pump dry, restrict or reduce port sizes, or dead head pump. This could cause component failure to pump.
  • DO NOT USE WITH FLAMMABLE LIQUIDS
Part Number Description Horsepower EPDM Repair
Kit Number		 EPDM Seal
Kit Number
3" Stainless Steel Pumps with Gas Engines
300PH13SS 3" SS Pump with 13 HP Honda® Engine with Electric Start & Pull Rope 13 HP (Made to Order) 18100SS 18025SS
3" Stainless Steel Bearing Pedestal Pump
300PB-SS 3" SS Bearing Pedestal with 1" Straight Shaft
Note: * Straight shaft for long coupling to electric motors		 N/A (Made to Order) 18100SS 18025SS
3" Stainless Steel Pump Only
300PO-SS 3" SS Pump Only with 1" Shaft Sleeve N/A (Made to Order) 18100SS 18025SS
Universal Base Plate Assembly
18700 Base Plate Assembly for 1-1/2", 2" & 3" Cast Iron or Poly Pump (Plate, Coupling Guard, Bolt Bag & Shims) N/A N/A N/A N/A
18702 Replacement Coupling Guard N/A N/A N/A N/A


Note: Recommendation for 5.8" Shaft: 56C Frame Size, 3 HP, 3450 RPM, & 5" Max Impeller for close coupling to electric motors.
Recommendation for 7.8" Shaft:145TC Frame Size, 3 HP, 3450 RPM, & 5" Max Impeller for close coupling to electric motors

Replacement Parts for 3" Stainless Steel Pumps
Item Part Number Description Quantity Required
3 18026SS Adapter for Gas Engine 1
4 13777SS 3/4" Stainless Steel Plug 1
5 18023SS 1" SS Impeller & Drive Shaft for Gas Engine 1
6 12777SS 1/2" Stainless Steel Plug 1
7 18034 5/8" SS Jam Nut 1
8 18004SS SS Wear Plate 1
9 18044 FKM (viton type) Outlet Gasket 1
10 18042 FKM (viton type)Gasket Check Valve Assembly 1
11 18021 Adapter Gasket 1
12 18010SS 3/8" - 16 x 1-1/8" SS Cap Screw HXHD 8
13 18033 Handle 1
14 18129 Clamp Assembly 1
15 18001SS SS Pump Housing 1
17 18106SS Wear Plate Flat Head Screw 2
18 V20018 3/8" Lock Washer 8
20 18504 1" Shaft 1
21 18500 Bearing Pedestal 1
22 18027 3/8"-16 x 1-1/2" HHCS 1
23 18025SS FKM (viton type) Seal Assembly 1
24 V20019 3/8" 16 SS Hex Nut 6
25 V20018 3/8" SS Lock Washer 6
26 18218 3/8"-16 x 24 x 2-1/8" SS Stud 6
27 13778V O-Ring FKM (viton type) 1
28 UV15163V O-Ring FKM (viton type) 1
Not Shown 18100SS Repair Kit (Consist of items 5, 8, 11, 17 & 23) 1
Banjo

Banjo

Banjo is a world-class producer of a wide range of mechanical and electrical valves, fittings, and self-priming centrifugal pumps for agriculture and numerous industrial applications that ship to every corner of the globe. Banjo employs an array of molding presses, numerous machining and assembly cells, and an optimized logistics system empowering our production and shipping operations.
