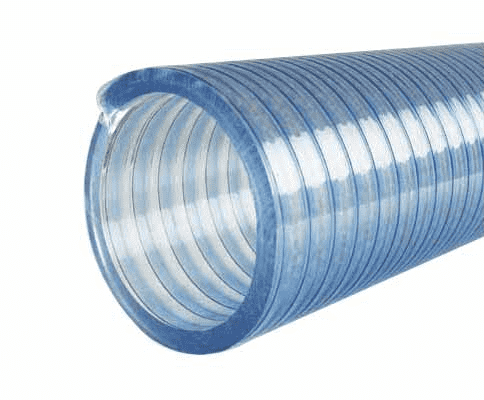

3010-0100-100 by Jason Industrial | 3010 Series | HD FDA USDA 3-A Liquid Food Suction Hose | 71 PSI | 1" ID | 1.24" OD | Clear | PVC | 100ft

3010-0100-100 by Jason Industrial | 3010 Series | HD FDA USDA 3-A Liquid Food Suction Hose | 71 PSI | 1" ID | 1.24" OD | Clear | PVC | 100ft

Save $57.18 Save $57.18
$200.13
$200.13 - $200.13
$200.13
$142.95
$142.95 - $142.95
$142.95

Jason Industrial Inc. Hose - Food Hose - 3010 HD PVC FDA USDA 3-A Liquid Food Suction Hose - Clear

Package Quantity: 100 FT

Specifications for Variant SKU: 3010-0100-100 Jason | 100 |
Series: 3010 Series
Hose Color(s): Clear/Semi-Clear
Internal Diameter: 1in
Outer Diameter: 1.24in
Tubing Construction: PVC
Applicable Specs & Approvals: Applicable 3-A Sanitary Standards, Applicable FDA Requirements, Applicable USDA Requirements

SPECIFICATIONS

Application: Transfer of food grade liquids, such as juices, wine, beer and potable water and dairy products. SAE Rating: N/A
Other Ratings: Meets FDA Requirements Approved by USDA for use in Meat & Poultry Plants Meets 3-A sanitary standards (which includes processing dairy products) Tube: PVC
Reinforcement: Clockwise PVC Helix Cover: N/A
Temperature Range: -5 deg. F (-23 deg. C) to +140 deg. F (+60 deg. C) Crimp Fittings: N/A
Reusable Fittings: N/A Branding: N/A
Other Features:
  • Clear visual flow.
  • Vacuum up to 29" of Hg
Part Number I.D. O.D. Reinforcement Max. Working Press. @ 68 deg. F Vacuum @ 68 deg. F Weight Min. Bend Radius Standard Length
in. mm in. mm PSI BAR inHg lb./ft. KG/m in. mm ft
Uncoupled
3010-0100-100 1" 25.40mm 1.24" 31.50mm PVC Helix 71 PSI 4.90 BAR 29.9 inHg 0.26 lb./ft. 0.39 KG/m 3.00" 76.20mm 100ft
3010-0125-100 1-1/4" 31.75mm 1.54" 39.12mm PVC Helix 64 PSI 4.41 BAR 29.9 inHg 0.34 lb./ft. 0.51 KG/m 4.00" 101.60mm 100ft
3010-0150-100 1-1/2" 38.10mm 1.82" 46.23mm PVC Helix 57 PSI 3.93 BAR 29.9 inHg 0.44 lb./ft. 0.65 KG/m 6.00" 152.40mm 100ft
3010-0200-100 2" 50.80mm 2.39" 60.71mm PVC Helix 57 PSI 3.93 BAR 29.9 inHg 0.74 lb./ft. 1.10 KG/m 8.00" 203.20mm 100ft
3010-0250-100 2-1/2" 63.50mm 2.93" 74.42mm PVC Helix 57 PSI 3.93 BAR 29.9 inHg 1.01 lb./ft. 1.50 KG/m 10.00" 254.00mm 100ft
3010-0300-100 3" 76.20mm 3.43" 87.12mm PVC Helix 57 PSI 3.93 BAR 29.9 inHg 1.21 lb./ft. 1.80 KG/m 12.00" 304.80mm 100ft
3010-0400-100 4" 101.60mm 4.53" 115.06mm PVC Helix 43 PSI 2.97 BAR 29.9 inHg 2.02 lb./ft. 3.01 KG/m 15.00" 381.00mm 100ft
Working pressure is temperature dependent. Jason Industrial Inc. disclaims any liability for use of their products in applications other than which they are designed.
Jason Industrial

Jason Industrial

Founded in 1958 in Fairfield, NJ, Jason Industrial quickly gained a solid reputation as a go to source for both industrial hose and power transmission belts. Jason Industrial offers a comprehensive portfolio of industrial hose, couplings and accessories along with hydraulic hose, fittings and crimping equipment.
