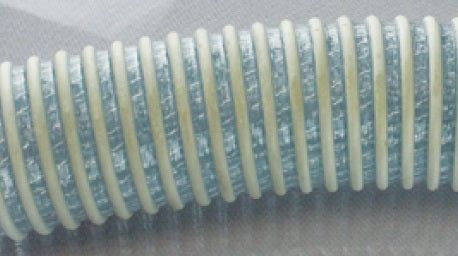

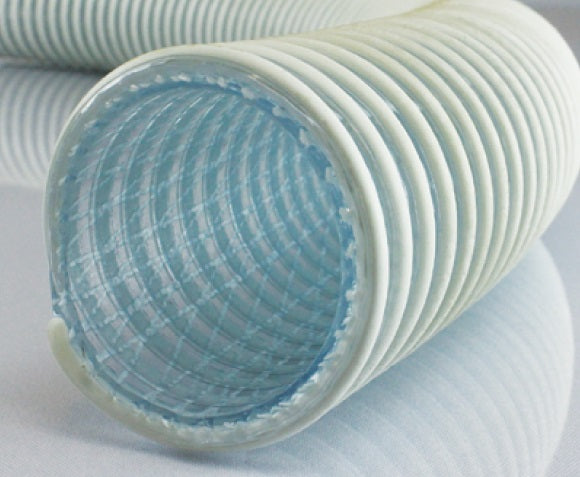

3012-0400-100 by Jason Industrial | 3012 Series | FDA 3-A Liquid Suction Hose | S-omega | 80 PSI | 4" ID | 4.78" OD | PVC | 100ft
3012-0400-100 by Jason Industrial | 3012 Series | FDA 3-A Liquid Suction Hose | S-omega | 80 PSI | 4" ID | 4.78" OD | PVC | 100ft
3012-0400-100 by Jason Industrial | 3012 Series | FDA 3-A Liquid Suction Hose | S-omega | 80 PSI | 4" ID | 4.78" OD | PVC | 100ft

3012-0400-100 by Jason Industrial | 3012 Series | FDA 3-A Liquid Suction Hose | S-omega | 80 PSI | 4" ID | 4.78" OD | PVC | 100ft

Save $588.87 Save $588.87
$2,061.05
$2,061.05 - $2,061.05
$2,061.05
$1,472.18
$1,472.18 - $1,472.18
$1,472.18

Jason Industrial Inc. Hose - Food Hose - 3012 PVC FDA 3-A Liquid Suction Hose - SΩ - Clear

Package Quantity: 100 FT

Specifications for Variant SKU: 3012-0400-100 Jason | 100 |
Series: 3012 Series
Hose Color(s): White/Off-White & Clear/Semi-Clear
Internal Diameter: 4in
Outer Diameter: 4.78in
Tubing Construction: PVC
Applicable Specs & Approvals: Applicable 3-A Sanitary Standards, Applicable FDA Requirements, Applicable USDA Requirements
Special Properties: Ground Wire in Hose, Outer Helix Protection

SPECIFICATIONS

Application: Food handling and heavy duty suction and discharge applications. Also for processing wine, beer, food paste, dairy and syrup. SAE Rating: N/A
Other Ratings: Meets FDA Requirements Approved by USDA Meets 3-A sanitary standards (which includes processing dairy products) Tube: PVC
Reinforcement: Non-toxic Food Grade PVC Clockwise Helix, One Synthetic Braid Cover: N/A
Temperature Range: -50 deg. F (-46 deg. C) to +150 deg. F (+66 deg. C) Crimp Fittings: N/A
Reusable Fittings: N/A Branding: N/A
Other Features:
  • Clear visual flow.
  • Easy to drag with "Go-Glide" external clockwise PVC helix.
  • Vacuum up to 29" of Hg
  • Safety Ohm (SΩ) embedded ground wire.
  • -50 deg. F cold weather resistant and still flexible
Part Number I.D. O.D. Reinforcement Braids Max. Working Press. @ 68 deg. F Vacuum @ 68 deg. F Weight Min. Bend Radius Standard Length
in. mm in. mm PSI BAR inHg lb./ft. KG/m in. mm ft
Uncoupled
3012-0150-100 1-1/2" 38.10mm 2.03" 51.56mm 1 110 PSI 7.58 BAR 29.0 inHg 0.47 lb./ft. 0.70 KG/m 2.50" 36.50mm 100ft
3012-0200-100 2" 50.80mm 2.60" 66.04mm 1 100 PSI 6.86 BAR 29.0 inHg 0.69 lb./ft. 1.02 KG/m 4.00" 101.60mm 100ft
3012-0300-100 3" 76.20mm 3.70" 93.98mm 1 100 PSI 6.89 BAR 28.0 inHg 1.13 lb./ft. 1.68 KG/m 6.00" 152.40mm 100ft
3012-0400-100 4" 101.60mm 4.78" 121.41mm 1 80 PSI 5.51 BAR 28.0 inHg 1.74 lb./ft. 2.58 KG/m 7.00" 177.80mm 100ft
3012-0500-100 5" 127.00mm 6.04" 153.42mm 1 70 PSI 4.83 BAR 28.0 inHg 2.99 lb./ft. 4.44 KG/m 9.00" 228.60mm 100ft
Working pressure is temperature dependent. Jason Industrial Inc. disclaims any liability for use of their products in applications other than which they are designed.
Jason Industrial

Jason Industrial

Founded in 1958 in Fairfield, NJ, Jason Industrial quickly gained a solid reputation as a go to source for both industrial hose and power transmission belts. Jason Industrial offers a comprehensive portfolio of industrial hose, couplings and accessories along with hydraulic hose, fittings and crimping equipment.
