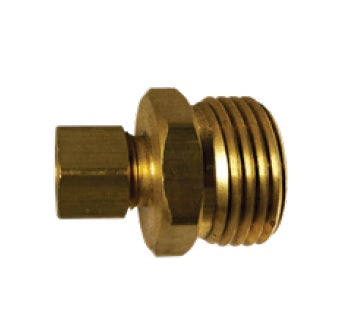

30136 by Midland | Garden Hose Fitting | Non-Swivel Compression x Male | 3/8" Compression x 3/4" Male GHT | Straight | Brass

Save $0.80

$7.18

$7.18 - $7.18

$7.18

$6.38

$6.38 - $6.38

$6.38

Midland Industries
Brass Fitting - Garden Hose Fitting - Non-Swivel Compression x Male

Washer Included

Quantity

Specifications for Variant SKU: 30136 Midland
Shape (Orientation):	Straight
Ends Configuration:	3/8in Tube Compression, 3/4in Male GHT
Material(s):	Brass
Seal Material(s):	Rubber

Temperature and Working Pressure Ranges:
From +350°F to +100°F at 75 PSI maximum or the recommended working pressure of the garden hose. (Not to exceed 150 PSI.) Note: All female connector ends should have a rubber washer inserted prior to usage. Male garden hose threads are all 3/4" with an outside diameter of 1.0625 and 11-1/2" threads per inch. Washers included are #30150B black rubber washers.


Part Number	Non-Swivel Compression x Male GHT	A	Hex 1	Hex 2	Approx. Weight (Lbs.)
30136	3/8" x 3/4"	1.525"	0.625"	0.62"	0.15
30137	1/2" x 3/4"	1.80"	0.815"	0.685"	0.19
