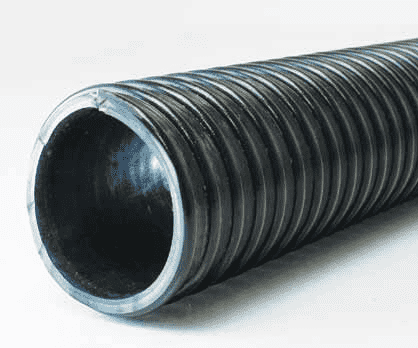

3020-0200-100 by Jason Industrial | 3020 Series | HD Polyurethane Lined | PVC Material Handling Hose | Black | 40 PSI | 2" ID | 2.40" OD | 100ft

Save $221.24

$774.34

$774.34 - $774.34

$774.34

$553.10

$553.10 - $553.10

$553.10

Jason Industrial Inc. Hose - Material Handling Hose - 3020 HD Polyurethane Lined, PVC Material Handling Hose - Black

Package Quantity: 100 FT

Specifications for Variant SKU: 3020-0200-100 Jason \| 100 \|
Series:	3020 Series
Hose Color(s):	Black
Internal Diameter:	2in
Outer Diameter:	2.40in
Tubing Construction:	Polyurethane
Cover Construction:	PVC
Special Properties:	Outer Helix Protection, Static Dissipating Cover

SPECIFICATIONS

Other Features:
Application:	For vacuum and transfer of abrasive crushed rock, gravel, sand or dry fertilizers, fly ash and also used for shot blast recovery.	SAE Rating:	N/A
Other Ratings:	N/A	Tube:	Polyurethane Abrasion Resistant Liner
Reinforcement:	Clockwise PVC Helix	Cover:	PVC
Temperature Range:	-40 deg. F (-40 deg. C) to +140 deg. F (+60 deg. C)	Crimp Fittings:	N/A
Reusable Fittings:	N/A	Branding:	N/A
Abrasion resistant PU liner Static dissipating cover compound -40 deg. F cold weather resistance Sub-zero flexibility Easy to drag with "Glo-Glide" external clockwise PVC helix

Part Number	I.D.		O.D.		Reinforcement	Max. Working Press. @ 68 deg. F		Vacuum @ 68 deg. F	Weight		Min. Bend Radius		Standard Length
	in.	mm	in.	mm		PSI	BAR	inHg	lb./ft.	KG/m	in.	mm	ft
Uncoupled
3020-0150-100	1-1/2"	38.10mm	1.85"	46.99mm	PVC Helix	50 PSI	3.45 BAR	29.0 inHg	0.42 lb./ft.	0.63 KG/m	2.00"	50.80mm	100ft
3020-0200-100	2"	50.80mm	2.40"	60.96mm	PVC Helix	40 PSI	2.76 BAR	29.0 inHg	0.59 lb./ft.	0.88 KG/m	3.00"	76.20mm	100ft
3020-0250-100	2-1/2"	63.50mm	3.09"	78.49mm	PVC Helix	40 PSI	2.76 BAR	29.00 inHg	0.82 lb./ft.	1.22 KG/m	3.00"	76.20mm	100ft
3020-0300-100	3"	76.20mm	3.64"	92.46mm	PVC Helix	40 PSI	2.76 BAR	29.0 inHg	1.18 lb./ft.	1.76 KG/m	4.00"	101.60mm	100ft
3020-0400-100	4"	101.60mm	4.76"	120.90mm	PVC Helix	35 PSI	2.41 BAR	29.0 inHg	1.94 lb./ft.	2.89 KG/m	6.00"	152.40mm	100ft
3020-0600-050	6"	152.40mm	6.80"	172.72mm	PVC Helix	30 PSI	2.07 BAR	28.0 inHg	3.50 lb./ft.	5.21 KG/m	12.00"	304.80mm	50ft
3020-0600-100	6"	152.40mm	6.80"	172.72mm	PVC Helix	30 PSI	2.07 BAR	28.0 inHg	3.50 lb./ft.	5.21 KG/m	12.00"	304.80mm	100ft
3020-0800-020	8"	203.20mm	9.16"	232.66mm	PVC Helix	30 PSI	2.07 BAR	28.0 inHg	5.90 lb./ft.	8.78 KG/m	18.00"	457.20mm	20ft
3020-0800-050	8"	203.20mm	9.16"	232.66mm	PVC Helix	30 PSI	2.07 BAR	28.0 inHg	5.90 lb./ft.	8.78 KG/m	18.00"	457.20mm	50ft

Working pressure is temperature dependent. Jason Industrial Inc. disclaims any liability for use of their products in applications other than which they are designed.

Jason Industrial

Founded in 1958 in Fairfield, NJ, Jason Industrial quickly gained a solid reputation as a go to source for both industrial hose and power transmission belts. Jason Industrial offers a comprehensive portfolio of industrial hose, couplings and accessories along with hydraulic hose, fittings and crimping equipment.
