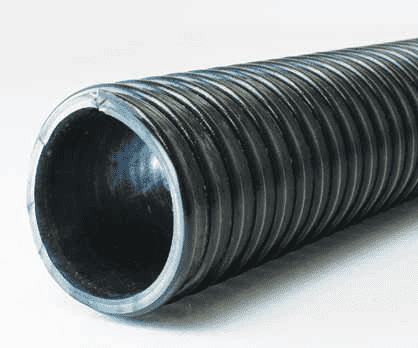

3020-0800-020 by Jason Industrial | 3020 Series | HD Polyurethane Lined | PVC Material Handling Hose | Black | 30 PSI | 8" ID | 9.16" OD | 20ft

3020-0800-020 by Jason Industrial | 3020 Series | HD Polyurethane Lined | PVC Material Handling Hose | Black | 30 PSI | 8" ID | 9.16" OD | 20ft

Save $428.65 Save $428.65
$1,500.27
$1,500.27 - $1,500.27
$1,500.27
$1,071.62
$1,071.62 - $1,071.62
$1,071.62

Jason Industrial Inc. Hose - Material Handling Hose - 3020 HD Polyurethane Lined, PVC Material Handling Hose - Black

Package Quantity: 20 FT

Specifications for Variant SKU: 3020-0800-020 Jason | 20 |
Series: 3020 Series
Hose Color(s): Black
Internal Diameter: 8in
Outer Diameter: 9.16in
Tubing Construction: Polyurethane
Cover Construction: PVC
Special Properties: Outer Helix Protection, Static Dissipating Cover

SPECIFICATIONS

Application: For vacuum and transfer of abrasive crushed rock, gravel, sand or dry fertilizers, fly ash and also used for shot blast recovery. SAE Rating: N/A
Other Ratings: N/A Tube: Polyurethane Abrasion Resistant Liner
Reinforcement: Clockwise PVC Helix Cover: PVC
Temperature Range: -40 deg. F (-40 deg. C) to +140 deg. F (+60 deg. C) Crimp Fittings: N/A
Reusable Fittings: N/A Branding: N/A
Other Features:
  • Abrasion resistant PU liner
  • Static dissipating cover compound
  • -40 deg. F cold weather resistance
  • Sub-zero flexibility
  • Easy to drag with "Glo-Glide" external clockwise PVC helix
Part Number I.D. O.D. Reinforcement Max. Working Press. @ 68 deg. F Vacuum @ 68 deg. F Weight Min. Bend Radius Standard Length
in. mm in. mm PSI BAR inHg lb./ft. KG/m in. mm ft
Uncoupled
3020-0150-100 1-1/2" 38.10mm 1.85" 46.99mm PVC Helix 50 PSI 3.45 BAR 29.0 inHg 0.42 lb./ft. 0.63 KG/m 2.00" 50.80mm 100ft
3020-0200-100 2" 50.80mm 2.40" 60.96mm PVC Helix 40 PSI 2.76 BAR 29.0 inHg 0.59 lb./ft. 0.88 KG/m 3.00" 76.20mm 100ft
3020-0250-100 2-1/2" 63.50mm 3.09" 78.49mm PVC Helix 40 PSI 2.76 BAR 29.00 inHg 0.82 lb./ft. 1.22 KG/m 3.00" 76.20mm 100ft
3020-0300-100 3" 76.20mm 3.64" 92.46mm PVC Helix 40 PSI 2.76 BAR 29.0 inHg 1.18 lb./ft. 1.76 KG/m 4.00" 101.60mm 100ft
3020-0400-100 4" 101.60mm 4.76" 120.90mm PVC Helix 35 PSI 2.41 BAR 29.0 inHg 1.94 lb./ft. 2.89 KG/m 6.00" 152.40mm 100ft
3020-0600-050 6" 152.40mm 6.80" 172.72mm PVC Helix 30 PSI 2.07 BAR 28.0 inHg 3.50 lb./ft. 5.21 KG/m 12.00" 304.80mm 50ft
3020-0600-100 6" 152.40mm 6.80" 172.72mm PVC Helix 30 PSI 2.07 BAR 28.0 inHg 3.50 lb./ft. 5.21 KG/m 12.00" 304.80mm 100ft
3020-0800-020 8" 203.20mm 9.16" 232.66mm PVC Helix 30 PSI 2.07 BAR 28.0 inHg 5.90 lb./ft. 8.78 KG/m 18.00" 457.20mm 20ft
3020-0800-050 8" 203.20mm 9.16" 232.66mm PVC Helix 30 PSI 2.07 BAR 28.0 inHg 5.90 lb./ft. 8.78 KG/m 18.00" 457.20mm 50ft
Working pressure is temperature dependent. Jason Industrial Inc. disclaims any liability for use of their products in applications other than which they are designed.
